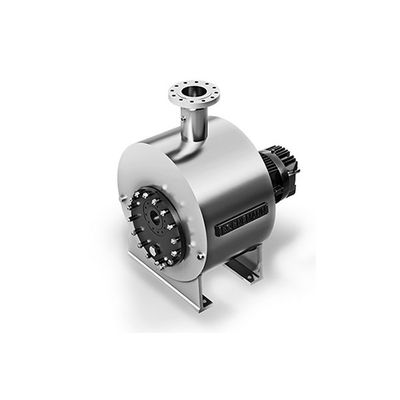

ITT Bornemann - Model Type MSL -Multiphase Pump
The MSL pump is a real Multiphase Pump with all the wellknown Bornemann MP-features. She is especially suited for single wells already being equipped with downhole pumps. The maximum allowable working pressure is 20 barg or acc. to ANSI B16.5 150 lbs. r,espectively.
Most popular related searches
Technical Data
- Capacity m³/h :up to 110
- Capacity gpm :up to 490
- Differential pressure in bar :up to 16
- Differential pressure in psi :up to 230
- Viscosity mm²/s (cSt) :1 - 500,000
- Max. temperature celsius :160
- Max. temperature fahrenheit :320
Advantages
- Self-priming
- High viscosities possible
- Low pulsations
- Low noise level
- Dry running possible
- Constant flow on varying pressures and volumes
Scopes of Application
- Up- and Midstream
- Conventional
- Heavy Crude Oil
- Petrochemicals
- Thermal Operations
- Wet Gas Compressions
- Offshore Topside
- Pipeline
