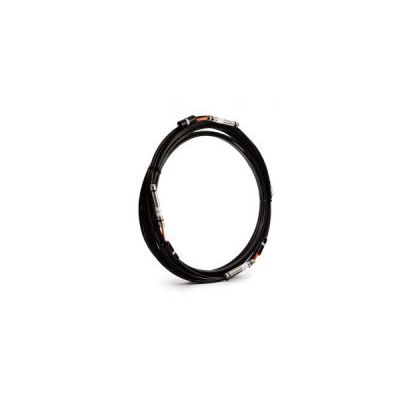

Model VW -Multiple Piezometers

SHARE

Allows multiple VW piezometers to be simply and reliably installed in a single borehole. It can be connected to a tough urethane jacketed Kevlar® reinforced single cable which prevents vertical void channels. Used primarily where multi-zone monitoring is needed at single locations. No conductors are shared ensuring the independent reliability of each sensor reading.

Most popular related searches
  • Over range 2 X F.S.
  • Resolution 0.025% F.S. minimum
  • Accuracy 0.1% F.S.
  • Operating Temperature -20 to 80°C
  • Diaphragm Displacement <0.001 cc at F.S.
  • Thermal Zero Shift <0.05% F.S./°C
  • Materials Hermetically sealed stainless steel housing
  • Thermistor Type NTC 3K Ohms @ 25°C
  • Thermistor Interchangeability ±0.2°C (optional ±0.1°C)
  • Thermistor Resolution 0.1°C
  • Filter 50 micron sintered filter.(High air entry alumina filter 1, 3, 5 Bar available)
