JAI - Model FS-1600D-10GE -Multispectral Camera

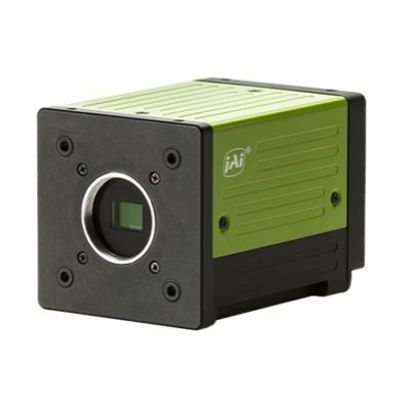

The Fusion Series FS-1600D-10GE is a multispectral camera that utilizes advanced 2-CMOS prism technology to capture simultaneous images across different spectral bands. It supports imaging in both visible (400-670 nm) and near-infrared (NIR, 740-1000 nm) spectrum, making it adept for applications that require detailed surface inspection as well as sub-surface defect detection. The camera integrates a 10 GigE interface allowing for high-speed data transfer and network flexibility, compatible with NBASE-T standards. A key feature is the individual exposure control for each channel enabling maintenance of a consistent signal-to-noise ratio without altering gain. With its robust capabilities, this camera is especially suited for industrial applications such as electronics inspection, precision agriculture, and print inspection providing synchronized color and NIR outputs. The FS-1600D-10GE combines precision, flexibility and cost-efficiency, potentially reducing the need for multiple inspection setups.
JAI's FS-1600D-10GE is a 2-CMOS multispectral prism camera providing simultaneous images of different spectral bands in a single camera - a visible color channel from 400-670 nm and a near infrared (NIR) channel from 740-1000 nm. This makes it possible to simultaneously inspect surface properties and sub-surface defects. A backwards-compatible 10 GigE interface provides exceptional speed and networking flexibility.
Simultaneous color and near infrared (NIR) imaging
The visible light channel outputs RGB or Bayer color images spanning the wavelengths visible to the human eye. The NIR channel, on the other hand, “sees” below the surface of organic and other materials to detect imperfections the human eye cannot see.
Replaces multiple inspection stations with a single setup
JAI’s prism technology ensures perfect two-channel alignment, allowing users to replace multiple inspection stations with a single setup, providing both ease of use and lower equipment and maintenance costs.
Individual exposure time adjustment for each channel
Separate exposure control for each channel allows the channels to be adjusted to one another without changes in the gain – maintaining a consistent signal-to-noise ratio at all times.
- Prism-based 2-CMOS multispectral area scan camera that simultaneously captures visible and near-IR light.
- Backwards-compatible 10GBASE-T (10 GigE) interface auto-negotiates to match the speed of connected equipment including NBASE-T (5 GigE and 2.5 GigE) and standard 1 Gbps 1000BASE-T GigE Vision.
- Sequence trigger mode for on-the–fly change of gain, exposure and ROI.
- Supports IEEE 1588 Precision Time Protocol for synchronization in multi-camera applications.
- Color output can be raw Bayer (8/10/12-bit) or 24/30-bit RGB using 5x5 in-camera interpolation.
- Dual-stream output enables color and NIR images to be simultaneously output over a single cable.
- Color Enhancer and Edge Enhancer functions included.
- Single- and multi-ROI modes.
- 20 percent better NIR sensitivity than previous CCD models.
- Product Line : Fusion Series
- Model : FS-1600D-10GE
- Type : Area Scan
- Color / Mono : Multispectral
- Light Spectrum : 2-Bands Visible + NIR
- Resolution : 1.6 MP
- Resolution WxH : 1440 x 1080 px
- Frame rate / Line rate : 226 fps
- ROI : Yes
- Interface : 10 Gbps GigE Vision
- Sensors : 2xCMOS (Vis/NIR)
- Sensor Name : IMX273
- Optical Format : 1/2.9 inch
- Cell Size WxH : 3.45 x 3.45 µm
- Shutter type : Global shutter
- Sensor Diagonal : 6.2 mm
- Active Sensor Dimensions WxH : 5.0 x 3.7 mm
- Camera Dimensions HxWxL : 62 x 62 x 86.5 mm
- Weight : 270 g
- Video Output : 8/10/12-bit *
- Lens Mount : C-mount
- Power Consumption : 10.4 Watt
- Operating Temperature (ambient) : -5°C to +45°C
