Gatta - Model SIM Series -Nanoruler

SHARE

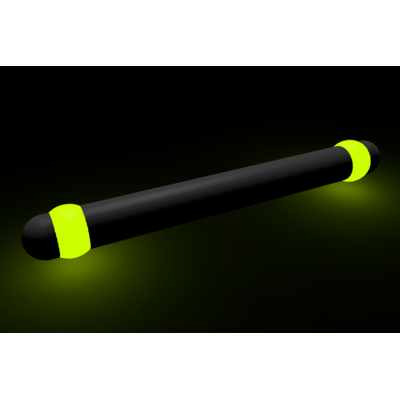

Nanorulers from the GATTA-SIM series are the perfect samples to check the resolution of your SIM system. The single color nanorulers carry two fluorescent marks out of dense arrangements of high quantum yield dye molecules.

Most popular related searches
microscopy

In addition we offer a new design containing three emitting points with two different fluorophores which allows the acquisition of very eye-catching images. The mark-to-mark distances of the single color GATTA-SIM nanorulers are available in the sizes 120 nm, 140 nm and 160 nm. We offer you the 160nm size in the colors red (ATTO 647N), yellow (Alexa Fluor® 568) or blue (Alexa Fluor® 488). The 140 nm size is available in the colors yellow and blue and the 120nm size is only available in blue. The multicolor nanorulers with three emitting points are available in the sizes 140 nm (Alexa Fluor 568 & Alexa Fluor 488) and 160 nm (ATTO 647N & Alexa Fluor 568 or ATTO 647N & Alexa Fluor 488).

On request we can also design special solutions for your specific requirements. All nanoruler samples will be GATTA-SIM super-resolution picture delivered on a sealed glass slide which you can comfortably put directly on your microscope.

GATTA-SIM - brightline

The GATTAquant Brightline series delivers you a much better tool for your experiments and calibration measurements we now developed a new series of GATTA-SIM nanorulers featuring an even higher fluorescence brightness but without any loss of compactness compared to previous GATTA-SIM nanorulers.


Currently we provide as colors red (ATTO 647N), yellow (Alexa Fluor 568), and blue (Alexa Fluor 488).

If you could not find the new GATTA-SIM - brightline nanorulers with your required distance please add a note to your request and we are happy to offer you custom samples optimized for your application.
