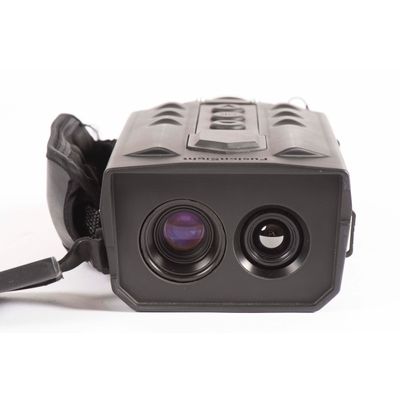

FusionSight® - Night vision device

FusionSight® is a lightweight Night & Day Vision Enhancer combining two viewing modes, based on colour low light and thermal cameras, to use separately or in smart fusion.

Especially adapted to the infantry chiefs and special forces requirements, this reliable handled device is efficient on the field during operations facing hidden and camouflaged enemies.
Drastically enhancing the detection of threats and targets of interest, FusionSight® is also a key device for Police and Homeland Security during investigation missions for quick or long- term surveillance tasks. FusionSight® provides substantial support even under limited visibility conditions for search & rescue of missing persons and casualties under wreckage.

Thermal sensor:

• UC (8-12μm)
  640 x 480 @17μm)

Visible sensor:

• CMOS visible sensor
  1280 x 1024p

Display:

• OLED Full HD
  1280 x 1024

Night FoV:

• W: 32° / N: 8°

Day FoV:

• W: 29° / N: 7.25°

Autonomy:

• 7 hours

Weight:

• 990g

Embedded sensor:

• Compass
  9-axes IMU and GPS

Embedded functions:

• Image recording
  Up & down wireless com

Video output:

• 25Hz HD color
