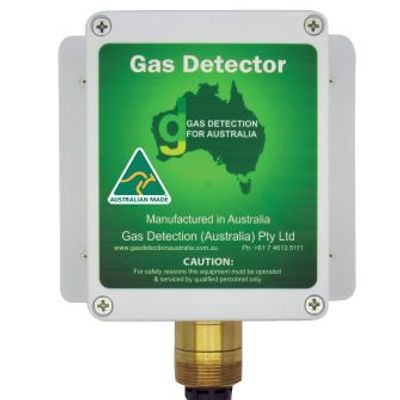

Model GDA 2527 -Nitrogen Dioxide Gas Sensor

The nitrogen dioxide gas sensor electronics are housed in a robust ABS sun tolerant plastic enclosure. The sensor element is on a pluggable lead allow ease of replacement.

• 0-30 ppm Range (Other ranges on request)
• 4-20 mA o/p (For Voltage Output see the GDA 2627)
• Low cost replaceable gas sensor element
• Easy to install
• Easy to calibrate (only gas and multimeter required)
• ABS sun tolerant housing
• Australian Factory Certificate of Calibration

Poisoning: GDA sensors are designed to operate in a wide range of harsh environments and conditions. However, it is important that exposure to high concentrations of solvent vapours is avoided, both during storage and operation.

• Detectable Gases Nitrogen Dioxide (NO₂)
• Detectable Gas Ranges 0-30 ppm
• Maximum Overload 200 ppm
• Cross Sensitivity Chlorine ~50%
• Power Requirements +24 VDC
• Output Types 4-20 mA loop powered
• Power Consumption
• Output Specifications Max loop impedance 680 Ω @ 24 VDC
• Connection 3 pin plug connector
• Wiring 2 core 18 AWG with overall screen
• Operating Temperature 10°C to 50°C (LT version -30°C to +10°C) Accuracy varies outside of range
• Operating Humidity 15% to 90% RH peak non condensing
• Operating Pressure 800 to 1200 mbar
• Accuracy of Reading ± 3% of full scale reading in standard operating environment
• Warm Up Time 30 seconds
• Response Time T90 = 45 seconds at SATP
• Zero Drift < 0.1% / 30 days
• Calibration Drift < 0.25% / 30 days at SATP
• Sensor Technology Electrochemical Cell
• Calibration Requirement Every year with 6 monthly functional tests if sensor operated at SATP
• Typical Operating Life 2 years before requiring sensor head replacement in standard operating environment
• Warranty 12 months from date of dispatch
• Dimensions 122 x 85 x 62 mm (H, W, D)
• Weight 260g
• Enclosure Rating IP56 with sensor module IP22
• Enclosure Material PVC Plastic & PTFE
• Cable Entry 2 x M20 top entry
