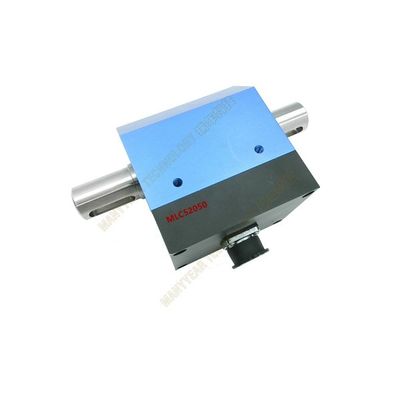

MANYYEAR - Model MLC5205 -Non - Contact Dynamic Torque Sensor
Static torque sensor, the pump torque sensor, the gearbox torque load cell, torque wrench sensor. MODEL: MLC5205. category:Torque Sensr.
Range: 3,5,10,20,30,50,100Nm. Material: alloy steel. Apllication: dynamic torque measurement, railway locomotive power, car power, tractor.
Most popular related searches
- Range : 3,5,10,20,30,50,100Nm :
- Stability : 0.25%/
- workvoltage : ±15V DC for freq output?24V DC for DC/DA output) :
- insulation : ≥2000MΩ(100VDC)
- Signal output : 5~15Khz?4~20mA?1~5V?0-10V :
- temperature : -20~60?( Customizabler high temp. -20~120?)
- Speed : 0~1000?3000?6000?8000 CL/min :
- humidity : 0~90%RH
- Speed signal : Standard Product without measuring speed, if the measured speed increased 30mm in length :
- overload : 150%
- precision : ±0.25%?±0.5% :
- Response time : 1ms
