3V TechModel Filtrodry FPP / SD -Nutsche Filters Dryers

SHARE

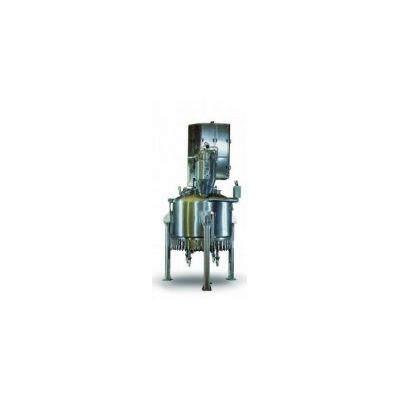

Nutsche pressure filter-dryer. Recommended for: pressure filtration,
`re-slurry` washing, smoothing and displacement washing, vacuum drying & product discharge. Includes: removable flat bottom flanged to
the cylindrical vessel, filter media, heated agitator designed with special teeth able to optimize the smoothing of the cake, vacuum drying and product discharge without incurring any mechanical damage to the product, double mechanical seal, dust filter, side mounted discharge port, CIP washing system for all of the internal contact surfaces. Validated CIP.

Most popular related searches
  • Available filter surface areas up to 16 m2
  • Agitator with straight or "S" shaped paddles, in two or three-armed designs
  • Bottom flange with C-clamps or hydraulic
bayonet closure
  • Mono or multilayer sintered filter media
  • Double mechanical seal wet, dry or "lift-off"
  • Side mounted discharge port with an O-ring, metal-to-metal or "reverse" seal
  • Dust filter media in Gore-Tex or multilayered
sintered metal
  • Available in chemical, pharmaceutical
and sterile versions

  • Vacuum, solvent recovery, heating & cooling, inerting systems
  • PLC automation systems
  • Material in contact with the product: 316 L Stainless
Steel, SAF 2205, Uranus B6, Alloy C 22, Titanium and many more
