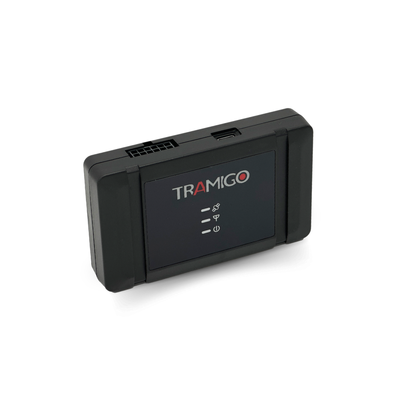

Tramigo - Model T25 -OBD/CAN Reader

The T25 connects to vehicle data using an OBD/OBDII port. It collects important engine and performance data, including: RPM, Speed, Fuel Level, Engine Hours, Mileage, Coolant Temperature, Fault Codes (DTC), Brake and Throttle Usage. Designed for fast installation with no hardwiring required, it also includes built-in BLE, enabling seamless wireless connection to Tramigo’s BLE accessories. Ideal for fleets needing quick deployment with full vehicle intelligence.

Hardware Specifications

Size: 100 mm x 60 mm x 21 mm
Weight without battery: 90 g
Weight with battery: 120 g

Temperature

Operating -20 to +80 ℃

Wireless communication

4G-2G fallback

GNSS/GPS

Multi-constellation with cold start -148 dBm
Tracking -165dB and accuracy <3m

Connection ports

Micro USB for data,
MOLEX Micro-Fit: Power, 2 x Output, 3 x Input, 1 x Analog Input, 1 x 1-Wire

SIM Options

Standard SIM and/or eSIM

Power

Input voltage 12V to 24V DC, 3.7 V

Bluetooth

Bluetooth low energy (BLE)
