MarineNav - Model Mini-Lite -Oceanus ROV System

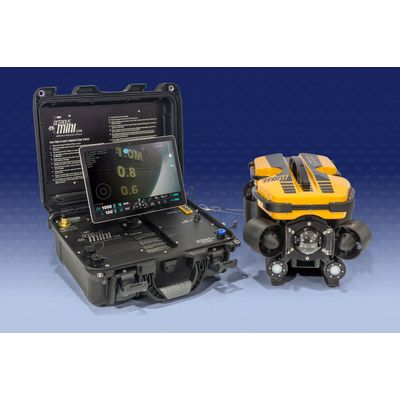

The Oceanus Mini-Lite ROV System by MarineNav represents a compact and cost-effective solution for underwater inspection and exploration. This system features a versatile topside control unit equipped with a detachable PC tablet, providing a user-friendly interface for operational control. The Mini-Lite ROV is constructed from marine-grade materials, ensuring durability and resilience in harsh marine environments. With a design incorporating six vectorized thrusters, it achieves speeds up to 4 knots and operates at depths up to 305 meters. The ROV includes a standard 1080P HD camera, offering high-quality real-time video feeds and a gimbal system with +/- 160° tilt control. Connection is facilitated through a neutrally buoyant tether, supporting tether lengths up to 500 meters. Additionally, MarineNav provides an array of ROV accessories for enhanced functionality. The system is packaged for easy transport in rugged, waterproof cases, and is backed by comprehensive warranties.
- Oceanus Mini-Lite ROV
- Oceanus Mini-Lite ROV topside control system
- Tablet with proprietary FCS-Lite touch software
- 26-ballast weight bolts and nuts
- Spare fasteners kit
- IP-rated rugged hard-shell transport cases
- ROV operator manual and documentation
- MarineNav’s 1-year limited warranty*
The Oceanus Mini-Lite ROV system is independently certified to operate to a maximum standard depth of 305 m (1000 ft). This feature-rich inspection class ROV is ideal for vessel and infrastructure inspection, locating and assisting ghost gear retrieval or visually documenting evidence. This user-friendly ROV system is the choice of novice and experienced pilots and features an extremely compact design for ease of transport.
The Oceanus Mini-Lite topside is protected by a one-year limited warranty extended to all components manufactured by MarineNav. The removable tablet is a third-party component (warranty coverage is provided through the third-party manufacturer). A two-year limited warranty protects the MarineNav Mini ROV. Conditions apply, contact MarineNav for full details.
- STANDARD DEPTH RATING OF 305m (1000 ft).
The Oceanus Mini-Lite ROV is independently certified to a depth of 305m (1000ft). - MAXIMUM SPEED OF 4 KNOTS
Maximum speed test conducted with ROV fitted with performance float block and absence of all ballast weights. - ROV DRY WEIGHT OF 10.8 kg (23.8 Lb)
Compact design and reduced footprint equate to a lightweight ROV. ROV ballast weights are not included as part of the ROV dry weight. - LATERAL AXIS ROV MOVEMENT
An unparalleled control system and superior thruster performance deliver fully vectorized ROV maneuverability. - 1080P HD VIDEO
A high-definition camera with +/- 160° tilt functionality provides stunning image captures. - ONE ROV AUX PORT
Capable of 1 x RS485/Manipulator/12V DC. - TWO 1500 LUMEN FRONT LIGHTS
Two front-facing ROV lights with incremental brightness controlled using the topside Flight Control System software. Upgrading to an optional handheld joystick controller allows incremental adjustments to light brightness via a command button array. - FLEXIBLE ATTACHMENT OPTIONS
The Oceanus Mini-Lite ROV is compatible with the Oceanus Mini/Pro topside control system and many RS485 ROV accessories.
- PORTABLE IP-RATED TOPSIDE ROV CONTROL CASE
With an exterior measurement of 401.3mm/15.8" (L) x 307.3mm/12.1" (W) x 172.7mm/6.8" (H) and weighing 7.39 kg (16.3 Lb) the IP-rated topside case functions as the operational hub of the Oceanus Mini-Lite ROV system. - 64GB SOLID-STATE DRIVE TOPSIDE TABLET
The device stores hours of content. Remove the PC tablet from the topside control case swing arm and download data to other devices. - TOUCH-SENSITIVE USER INTERFACE
Touch-sensitive commands that display all ROV controls in a series of clear, easily viewed modules. Touch to engage function, enlarge module for precise function adjustment. - BUILT-IN WIRELESS COMMUNICATION
Wireless communication between the PC tablet and the topside case to a maximum range of 20m. - OCEANUS MULTIPORT
Our Oceanus Multiport communication system allows rapid integration of third-party accessories, software and external processors. - COMPATIBLE WITH OCEANUS JOYSTICK HAND-HELD CONTROLLER
Control crucial ROV functions with a MarineNav Oceanus joystick hand-held controller by connecting the hand controller to one of the available USB ports in the Oceanus Mini-Lite topside case. (the v3.0 hand-held controller with mounting bracket is available as an optional ROV system upgrade). - NEUTRALLY BUOYANT TETHER
Neutrally buoyant tether lengths are available to a maximum of 500m length upon request. (Purchased as a separate ROV accessory. Contract MarineNav for options and pricing).
