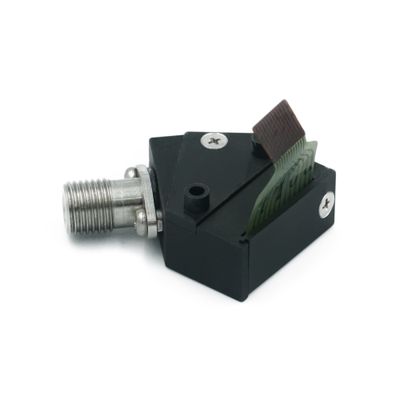

Ibsen - Model PEBBLE NIR -OEM Spectrometer
Ultra-compact and cost-efficient OEM spectrometer modules for the near-infrared range; The PEBBLE NIR spectrometers offer a cost-efficient mini spectrometer module for OEM manufacturers of analytical instruments that do not want to sacrifice performance and robustness for compactness.
PEBBLE NIR is based on the same proven diffraction grating technology used in all other Ibsen spectrometers. This ensures that PEBBLE can be manufactured in high quantities with very small unit-to-unit performance variations.
This type of multi-spectral sensor in the NIR range provides many benefits when used in the agricultural, pharma, and medical industries. It can detect gluten, diffuse tissue reflectance, and blood analysis. The PEBBLE spectrometer is small and thus good for handheld devices. The compact spectrometer is also easier to use and provides the full spectrum.
The miniature PEBBLE NIR spectrometer covers a wavelength range of 950 – 1700 nm and offers a resolution of 12 nm. It utilizes a sensitive un-cooled G13913 InGaAs detector from Hamamatsu.
If the specifications of our standard PEBBLE configurations do not match your requirements, Ibsen can customize an OEM spectrometer to meet your exact needs.
- 950 nm to 1700 nm wavelength range
- Numerical aperture of 0.22
- Configurable resolution from 12 nm to 16 nm
- Footprint of 23 mm x 21 mm x 8 mm
Product: PBM-400
Wavelength range: 950-1700 nm
Detector: Hamamatsu G13913
Benefit: High sensitivity and ultra-compact size
How to couple into your spectrometer
You can couple into your spectrometer both by free space or via fiber.
You also have several options for reading out over a standard interface like USB or SPI with our different electronics options, which you can see here.
