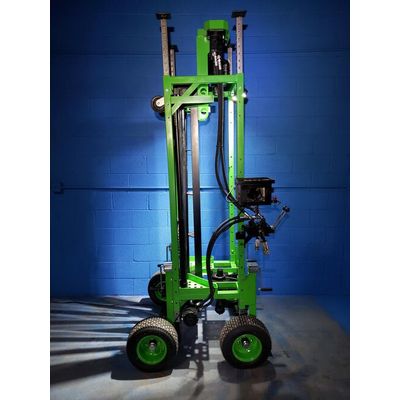

Model Riginaboxtm -One-Person Operable System

SHARE

RIGINABOXtm is a one-person operable system that can drill and install a vertical loop field inside most basements, slab on grades or garages with a minimum ceiling height of 7’ – 0”. Exterior drilling can be done using the systems suitcase weights and earth anchors. It requires as little as 30” of access to yard area. The package includes a modular electric hydraulic system or the option of a fossil fuel burning hydraulic unit. Works for existing and new construction, residential or commercial. Almost 80% of the U.S. population live in urban areas. Many of the homes and businesses in these locations cannot install a Geothermal HVAC system because of a lack of lot space or accessibility – UNTIL NOW.

Most popular related searches
geothermal HVAC
geothermal installation
geothermal loop
electrical system
geothermal
earthing system
geothermal system
electrical installation

Introducing the THIRD GENERATION RIGINABOXtm DRILL RIG
Offering a portable, powerful and one man operable 100% modular electric driven hydraulic driven system requiring as little as a 60AMP Single Phase Panel that enables vertical loop installation both inside and under structures as well as exterior fields.

RIGINABOX can drill and install a vertical loop field inside of most basements, slab on grade or garages with a ceiling height of 7’- 0” finished or more.
EXTERIOR DRILLING IS ACHIEVED USING WEIGHTS AND AN EARTH ANCHOR SYSTEM REQUIRING ONLY 30” OF ACCESS TO YARD AREA. For existing and new construction, residential and commercial.

  • Lot space outside of building not necessary.

  • Superior loop temperatures vs. exterior installed loop fields.

  • Manifold installed in mechanical room for easy access to flow monitoring, individual loop shut down and do it yourself air purging using no equipment.

  • Warmer loop temperatures in the winter require less antifreeze and pump power. Most importantly provides for more efficient equipment.

  • Grass, trees and landscaping are not disturbed.

  • Project construction time is not delayed. The drilling is done after the first floor deck is installed. Second floor deck if slab on grade.

  • Less fuel to drill makes for a greener install.

  • 100% Electric Driven eliminates the need for gas or diesel fuel.

  • Less installation time.

  • Machine can enter through a window, a door or down stairs.

  • Reduces Installation Costs!

  • Future additions, decks, pools or utilities work will not disrupt the loop field.

  • Residential and Businesses ability to install Geothermal HVAC drastically improved.

  • Other Trades can take advantage of available lot space for equipment/material storage.

  • Hot or cold, rain or shine – you are drilling inside.
