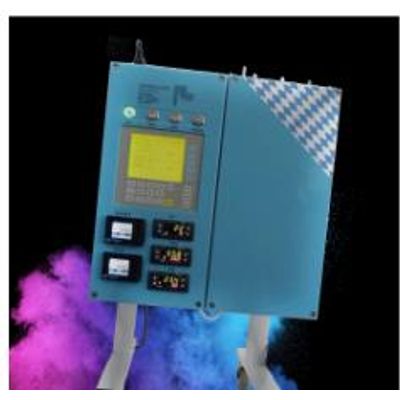

Gröger - Model GO-ATC -Online Analysis System
The GO-ATC is an online analysis system for determination of the THC (Total Hydro Carbon) fraction of the air and other gas component of the air (optional).
Most popular related searches
analysis system
cleanroom monitoring
wastewater treatment system
gas sampling analysis
filter monitoring
zero gas
gas cooler
digital temperature controller
mass flow metering
laboratory filter
-
Immissions- and emissions control
-
Industry as chemical-especially petrochemical industry
-
Research institutions in the purity gas and breathing gas field
-
Wastewater Treatment Technique in the wastewater sector for monitoring of methanol
-
Hospitals for climate system monitoring
-
Aviation for monitoring the cabin air
-
Chemical laboratories
-
Filter monitoring
-
Clean room monitoring
FID was yesterday – ATC is today
-
Small, mobil model
-
No cunsumables
-
No ultra high purity gases
-
Low operating costs
-
Resolution 0,001 mg Cx Hy
-
Genuine online measurement
-
No zero gas/ no burn gas
-
Optional remote maintenance and data retrieval via LAN, WAN and GSM/ UMTS are possible
-
Safe, easy and environmentally friendly handling
-
Automatic calibration
Continuous online measurement of hydrocarbons and other chemical components, the GO-MINI-ATC makes it possible.
Standard equipment
-
Gas cooler GO-PK 2
-
Oxidation furnance
-
Ultramat U6
-
Gas pump
-
Condensate pump
-
Temperature controller
-
Mass flowmeters and controllers
Options / accessory
-
Device for measuring other gases
-
Software
-
Transport rack
-
Further options on request
- N-DIR Gas analyser Ultamat U6
- Smallest effective range ATC LQD 0,002 mg CO2/Nm3 = 0,77ppb Cx Hy/Nm3
- LDL 0,001 mg CO2/Nm3 = 0,4 ppb Cx Hy/Nm3
- Admissible water content in test gas 8,00 ml/l / 500 ml/h pro Kanal
- Display LCD
- Limit values Four
- Weight 30 kg
- Power supply 230 V / 50 Hz
- Lenght 320 mm
- Breadth 440 mm
- Height 450 mm
- Power consumption max. 350 W
- Temperature rise time approx. 60 Min.
