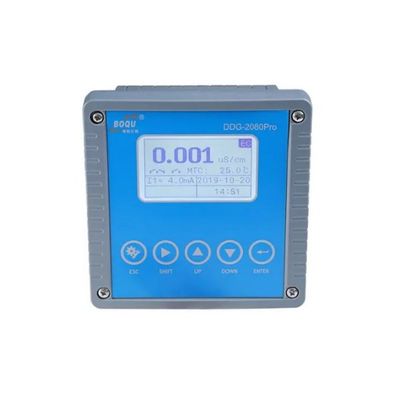

BOQU - Online Conductivity Meter

FromShanghai BOQU Instrument Co., Ltd.

SHARE

Online conductivity meter are used in industrial measuring of the temperature, conductivity, Resistivity, salinity and total dissolved solids, complete functions, stable performance, easy operation, low power consumption, safe and reliable, using matching analog conductivity electrode, can be widely used in thermal power generation, chemical industry, metallurgy, environmental protection, pharmaceutical, biochemical, food, tap water and other industrial occasions.

Most popular related searches

conductivity monitoring

total dissolved solids

conductivity resistivity

conductivity electrode

chemical protective

pharmaceutical water

chemical protection

Temp. compensation: Pt 1000/NTC10K
Temp. range: -10.0 to +130.0?
Temp. resolution: 0.1?
Temp. accuracy: ±0.2?
Matched electrode: DDG-0.01/DDG-0.1/DDG-1.0/DDG-10/DDG-30
Ambient temperature range: 0 to +70?
Storage temp. : -20 to +70?
Display: Back light, dot matrix
Current output: 4-20mA
RS485: Mod bus RTU protocol
Maximum relay contacts capacity: 5A/250VAC,5A/30VDC
Language selection: English/Chinese
Waterproof grade: IP65
Power supply: From 90 to 260 VAC, power consumption < 4 watts
Installation: panel/wall/pipe installation
Weight: 0.9Kg
