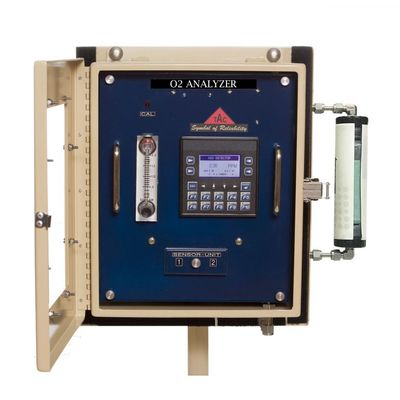

TAC - Model XLE 105-3 -Online O2 Process Analyzer

The analyzer will display “Sensor Weak” when the O2 sensor is 75% used.  This new feature provides the operator a warning to change the sensor.

A bump test can be performed to verify readings without removing the sample line.  This also saves the operator from completing a full calibration that takes 10 minutes.

Displays Historical Trend of O2 Readings within the previous hour

The display will read “Flow Fail.”  If the regulators and the flow meter(s) are not working properly and the sample to the analyzer is obstructed.

The SD memory card is used to store Historical Calibration and Alarm Data.  Each analyzer has the ability to be given a Name or ID.  The selected ID name will also be displayed when downloading data from SD card to a spreadsheet.

Range: Customer to specify a range and can be field programmable to alarm at any desired set point.

Detection Method: Micro Fuel Cell (Estimated life: 1 Year)

Calibration: An LED indicator on the front panel illuminates when the analyzer is in calibration mode.
Display shows “Cal Complete” after a successful calibration
Calibration can be performed Automatically or Manually
Click “VIDEOS” tab to watch how to calibrate our analyzers

Communications Output: 4-20 mA (Self Powered)
Modbus
(See Customization Tab for other options)

Sample Input Pressure: Inlet 10 +/-2 PSIG

Response Time: Less then 60 Seconds

Instrument Accuracy: +/-5% of the Full Scale

Instrument Repeatability: +/- 2%

Current Draw: Less then 1 A

Operating Temperature: -20°C to 50°C; -40°F to 122°F
