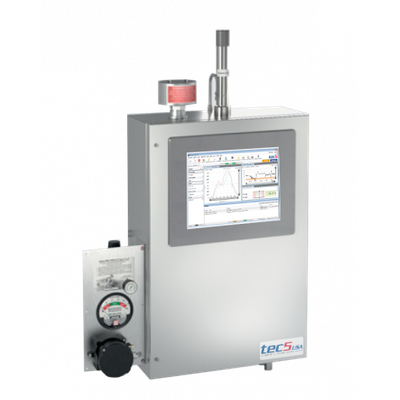

tec5USA - Online Raman Analyzer

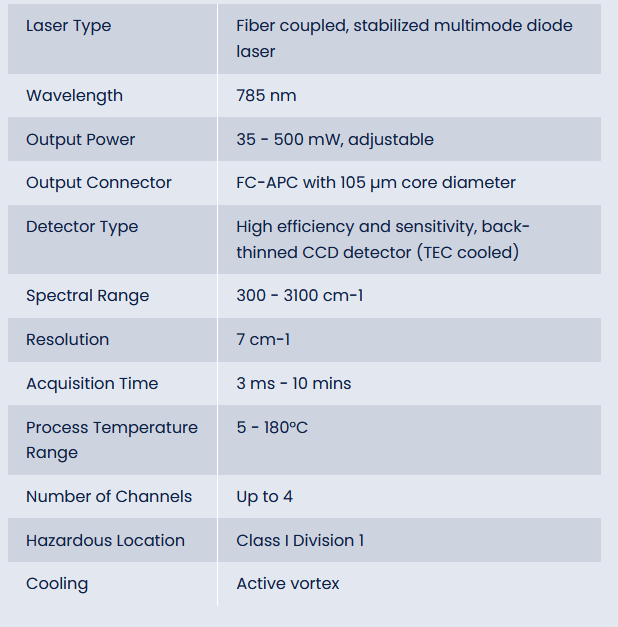

The tec5USA Online Raman Analyzer utilizes a temperature stabilized 785 nm laser with tunable output from 35 – 500 mW, allowing for safe laser operation below any ignition energies of any chemical species present in the environment. The system contains a highly sensitive TE-cooled CCD array used in conjunction with VPH transmission gratings, allowing for straylight reduction, highly efficient dispersion, and a wide spectral range of 300 – 3100 cm^-1. The fiber-bundle cross section converter optimizes light throughput by forming a linear arrangement of fibers to create the spectrometer entrance slit.

• Process ready spectroscopy solution for
  installation in hazardous environments
• Stabilized multimode laser source
• Short data acquisition times
• Lockout, tagout safety system (LOTO)
• High efficiency and sensitivity, back-thinned CCD detector

• Maintenance free sample acquisition
• Identify and quantify several components simultaneously
• In-line monitoring via direct probe insertion
• Multichannel operation capability
• Closed-loop control via DCS connection
