tec5USA - Model CID2 -Online Raman Analyzer

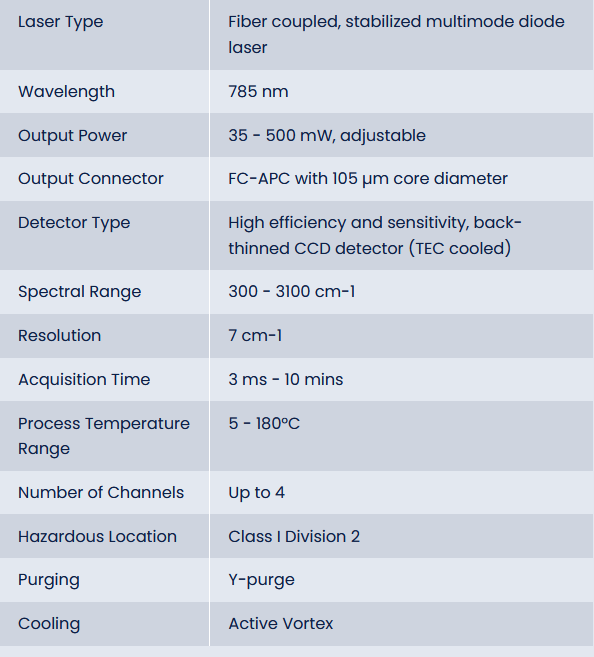

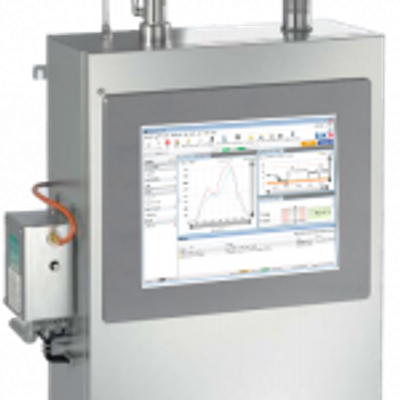

The tec5USA Raman Analyzer solution consists of a Field Raman Spectrometer System and the Tidus XP Raman Immersion Probe. The lockout tagout (LOTO) system, robust design and explosion-proof enclosure allows for safe integration into the harsh environments. The tec5USA Online Raman Analyzer utilizes a temperature stabilized 785 nm laser with tunable output from 35 – 500 mW, allowing for safe laser operation below any ignition energies of any chemical species present in the environment. The system contains a highly sensitive TE-cooled CCD array used in conjunction with VPH transmission gratings, allowing for straylight reduction, highly efficient dispersion, and a wide spectral range of 300 – 3100 cm^-1. The fiber-bundle cross section converter optimizes light throughput by forming a linear arrangement of fibers to create the spectrometer entrance slit.
