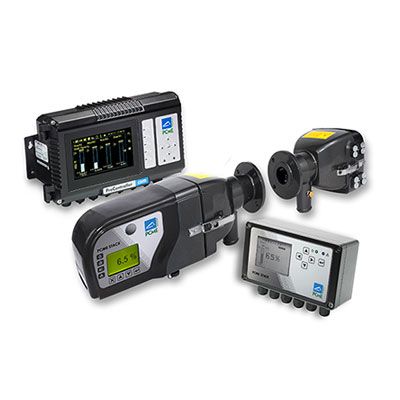

Envea - Model Stack 710 -Opacity Approved Particulate CEM System
FromENVEA
QAL1 approved particulate CEM which meets US EPA PS-1 requirements for Opacity monitoring from combustion stacks. Robust multi corner cube reflector provides truer reflection of transmitted light compared to traditional “mirror type” reflectors providing greater confidence in measurement.
More about this product— External link
Most popular related searches
wet electrostatic precipitator
particulate continuous emissions monitor
bag filter cartridge
electrostatic precipitator
electrostatic precipitation
dry flue gas
wet electrostatic precipitation
epoxy coating
cartridge filter
filter cartridge
- Outstanding reliability with no continuously moving parts
- Automatic in-situ zero and span checking with built-in calibration audit and zero drift correction
- Dual light source, with patented Flood LED source provides robust check of the detectors
and minimises effects of temperature instability
- Stacks after bag filters, cartridge filters, cyclones, electrostatic precipitators, no filtration
- Non-condensing / dry flue gases
Typical Applications:
- Incineration
- Metals (eg Steel/Aluminium)
- Minerals (eg Cement/Gypsum)
- Chemicals (eg Refinery / Rubber)
- Power Generation Plant (eg Coal/Biomass)
- Measured parameters: Dust
- Technology: Opacity
- Measurement/Monitoring capability: 0-100%*
- Stack/Duct diameter suitability: up to 10m
- Flue gas temperature: up to 600°C
- Baghouse: YES
- Cartridge Filter: /
- Ceramic Filter: /
- Coalescent Filter: /
- Cyclone: /
- Electrostatic Precipitator (ESP): YES
- Wet Electrostatic Precipitator (WESP): /
- Wet Scrubber: /
- Sensor variants: Cast aluminium, epoxy coated
- QA checks: YES
- Measurement capability: 0 – 100% (opacity); 0-1000 mg/m3 (concentration)
- Sensor Variants: cast aluminium, epoxy coated
- Stack Temperature Ranges: up to 600°C
- Functionality and QA Checks: Automatic zero and span; automatic correction for zero drift
- Interface:
- Available as standalone sensor pair (no controller) or with either standard control unit (Interface module) for single stack or with ProController for multi-sensor networks
- Available with standard control unit (Interface module) for single stack or with ProController for multi-sensor networks
- On-board data logging (control unit only): User configurable Long term, Short term or Pulse logging
- Output: RS232, RS485 (Modbus), Ethernet Digital Alarm and 4/20mA (number of outputs dependant on system configuration (with or without controller)
- Air Purge: blower required
- Enclosure Protection Rating: IP65
Certified:
- TÜV (UBA) certified to EN15267-3
- QAL1 as defined by EN14181
- QAL3 compliance to EN14181
- US EPA PS-1 compliant
