RBR Ltd.

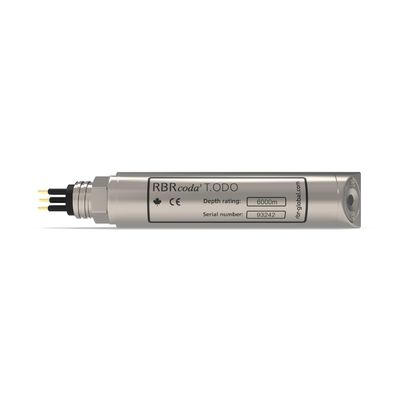

RBRcoda³ - Model T.ODO -Optical Dissolved Oxygen Sensor
FromRBR Ltd.
The RBRcoda³ T.ODO is an optode with exceptional performance. With a standard accuracy of 8µM but a power consumption of only 36mJ/sample, it is without a peer in optical oxygen measurement tools. Rated to 6000m depths and trivial to integrate, it is one solution for all deployments. Available as | slow (30s), standard (8s), and | fast (1s) variants. The | slow version has a protective layer over the foil to allow it to be cleared of biofouling for long-term moored applications. The temperature channel compensates the foil and also provides an independent temperature output.
Most popular related searches
optical dissolved oxygen sensor
optical oxygen measurement
dissolved oxygen sensor
limnology monitoring
temperature calibrator
oxygen monitoring
oxygen sensor
optical oxygen sensor
optical monitoring
water supply
- High accuracy
- Low power consumption
- Long deployments
- Optical stability
- RS-232 output
- Depth up to 6000m
Physical
- Connector: MCBH-6MP
- Housing: Titanium
- Depth rating: 6000m
- Diameter: 28mm
- Length: 125mm (instrument only)
- 160mm ((instrument plus connector)
- Weight: 180g in air, 100 in water
Power
- Supply voltage: 7 - 15V (12V nominal)
- Sampling current: 10mA for 300ms (36mJ/sample)
- Quiescent current: <10μA
Interface
- RS-232: polled or autonomous streaming
Oxygen
- Calibrated range: 0-500μM concentration
- 0 - 120% saturation
- 1.5°C to 30°C temperature
- Initial accuracy: Maximum of ±8μM or ±5%
- Resolution: <1μM (saturation 0.4%)
- Time constant: <1s | fast, <8s standard, <30s| slow
- Sampling rates: 24hr to 1Hz
Temperature
- Calibrated range: -5°C to 35°C
- Initial accuracy: ±0.002°C
- Resolution: <0.00005°C
- Typical stability: ±0.002°C/year
- Time constant: <1s
