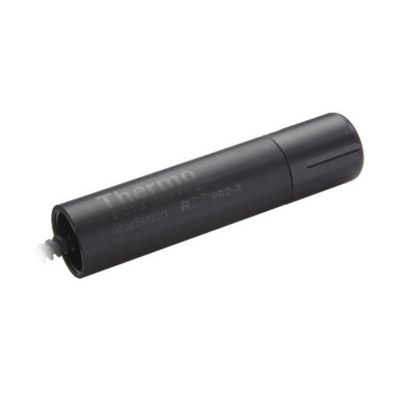

AquaSensors™ RDO™ Pro-X - Model RD6A43 -Optical Dissolved Oxygen Sensor
Continuously monitor dissolved oxygen (DO) in municipal and industrial applications with the Thermo Scientific™ RDO™ Pro-X Optical Dissolved Oxygen Sensor. The RDO Pro-X provides real-time, reliable data through continuous DO monitoring, which helps improve wastewater treatment operations. Connect this advanced optical DO sensor directly to a PLC for seamless integration with industrial control systems. Use any computer to display data, calibrate and customize the measurement without an intermediate analyzer electronics box. Optional AV38 local display/controller is also available for more conventional installations offering single or dual sensor inputs. This versatile system is ideal for monitoring DO levels from 0 to 20 ppm throughout a wastewater treatment plant.
The AquaSensors RDO Pro-X is the latest generation in rugged luminescent dissolved oxygen technology for wastewater monitoring.
- 0 to 20ppm measurement range
- No membranes; only annual field replaceable caps
- Resists photo-bleaching and abrasive process media
- No “poisoning” by sulfides
- No cross sensitivity to carbon dioxide, ammonia, pH, sulfide, sulfate, chloride or hydrogen sulfide
- Plug-and-play design with digital network interface
- For local display, connect to AquaPro™ or AV38
Recommended for:
- Municipal and industrial wastewater
- Aquaculture
- Brewing
- Fermentation
- Bio-processing
- Product Size : Each
- Accuracy : ±0.1ppm up to 8ppm/±0.2ppm from 8 to 20ppm
- Description : Optical RDO Pro-X Sensor with Modbus RTU (RS485) Interface
- Max. Pressure : 300psig (at 50°C)
- Range : 0 to 20ppm, 0 to 200% saturation
- Resolution : Below 10ppm; 0.01ppm, 0.1% sat and Above 10ppm; 0.1ppm, 0.1% sat
- Step Response Time : 90% in 30 seconds/95% in 37 seconds
- Temperature (English) Operating : 32° to 122°F
- Temperature (Metric) Operating : 0° to 50°C
- IP Rating : IP67
- Voltage : 8 to 36VDC
- Type : Dissolved Oxygen Sensor
- For Use With (Equipment) : AV38 DataStick™ Local Monitor and Controller
