HCTM - Model PC-3106 -Optical Particle Counter
FromHCTM

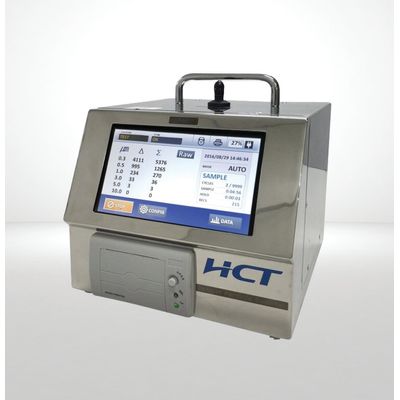

The PC-3106 Portable particle counter was designed to meet today`s rigorous Cleanroom standards. The PC-3106`s 28.3 LPM (1 CFM) flow rate and 0.3 um sensitivity and 6-simultaneous channels of data make it an ideal solution for routine cleanroom monitoring, spot checking, and certification. Data can be viewed on the larger color touchscreen display, downloaded directly to a PC or transferred via a USB drive. The PC-3106 conforms to ISO-21501-4 and JIS 9921B international standards.
Most popular related searches
particle counter
stainless steel enclosure
portable particle counter
optical particle counter
cleanroom monitoring
cleanroom standard
particle sizing
cleanroom
light scattering particle
particle size monitoring
- Complies with all requirements of ISO 21501-4
- Measure particle size and number concentration
- C ount individual particles by collecting single particle light scattering
- U p to 6 channels of simultaneous particle count data
- Touch screen control and user-friendly interface
- Size range from 0.3 um to 10.0 um
- 1.0 CFM (28.3 L/min) flow rate
- Printer for immediate output
- Data transfer via USB, USB flash drive, Ethernet
- Stainless Steel enclosure
- Cleanroom Monitoring
- Trend Analysis
- Facility Certification Testing
- Statistical Process Control
- Portable or Dedicated Use
- Tool and Equipment Testing
