GeoVista - Optical Televiewer

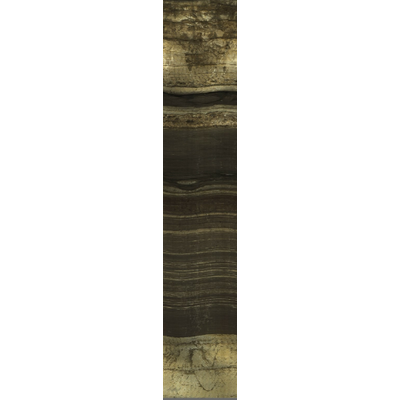

The Optical Televiewer provides continuous logs of oriented, unwrapped images of the borehole wall revealing detailed information on fracture and bedding dip direction and orientation. The operating software acquires this high resolution data in real time. The Optical Televiewer provides real time high resolution 360 degree images of the borehole wall. It can be run in both air filled and (clear) water filled holes. Log parameters include 360° oriented optical image and borehole azimuth and dip.
