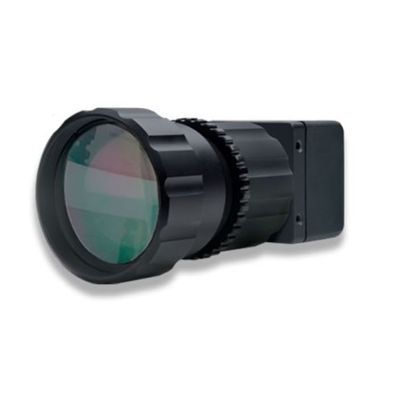

Model Micro-SWIR 640CSX SWaP -Optimized Camera

On-board Automatic Gain Control (AGC) optimizes the camera`s dynamic response throughout day and night imaging scenarios. Camera Link® digital output provides for plug-and-play video with 12-bit images for digital image output. The light weight, compact size, and low power draw are ideally suited for integration into commercial systems and industrial process monitoring applications. Optional NIR/SWIR technology is available to extend the sensitivity of the SU640CSX below 0.9 μm, offering the advantage of both Near Infrared (NIR) and Short Wave Infrared wavelength response.

• 640x512 pixel format, 12.5 μm pitch

• Disruptive price

• 30 or 60 frames per second full frame rate

• 1.5 W power consumption (@ 20° C)

• High sensitivity 0.9 to 1.7 μm spectrum response imager; NIR/SWIR, from 0.7 to 1.7 μm

• Low light to daylight imaging

• Compact size

• All solid-state InGaAs imager

• Snapshot exposure

• On-board, real time non-uniformity corrections

• Digital 12-bit Camera Link® base output; Other output options available upon request

• Automatic Gain Control (AGC)

• C-mount compatible; adapters available

• Selectable contrast enhancement modes

• User defined Region of Interest (ROI) windowing mode

• Digital pixel binning

• FCC Part 15 and MIL-STD-461F certified

• Tested to MIL-STD-81OG for functional shock, vibration, thermal shock, storage temperature, and humidity

• Operation from -40°C to 70°C case temperature

Columns (32 - 640): 640

Rows (32 - 512): 512

Max Frame Rate: 60

Instructions: adjust the number of rows to determine the maximum frame rate for a given window. Frame rate does not change with number of columns on this camera. However, the number of columns can be reduced for other reasons.

Max frame rates are estimated, actual results may vary.
This calculator does not contain any export controlled technical data.
