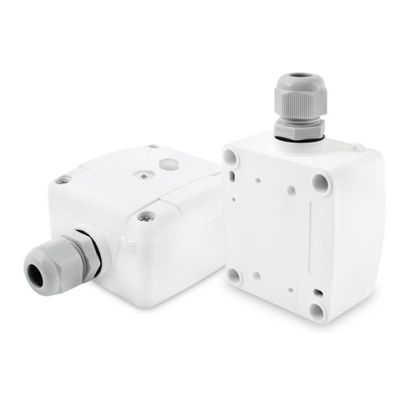

Andivi - Model ANDALUX / ANDAPIRLUX / ANDAPIR -Outdoor Motion and Light Sensor
Outdoor Motion and Light Sensor ANDALUX / ANDAPIRLUX / ANDAPIR he combination sensor for motion sensor and light sensor can is primarily intended for outdoor use. The light sensor is equipped with a DIP switch for 4 different light levels. The measuring range of our outdoor light sensor and a motion sensor is between 0 and 100 000 lux. The motion sensor’s time constant of the relay output can be set between 1 second and 10 minutes.
ANDALUX / ANDAPIRLUX / ANDAPIR sensor is characterized by manual adjustability of the shift shaft via a potentiometer, whereby redundant circuits can be prevented.
The output of this sensor can be 0…10V or 4…20mA. An additional variation represents availability with or without a relay.
Custom variations of the Andivi ANDAPIRLUX sensor are avaliable with an additional temperature sensor: NTC1,8k /5k /10k /20k / Precon, KTY81-110, KTY81-210, LM235Z, DS18B20, Pt100, Pt1000 Optional: Sensor °C passive, isolated (Kl. A, B, 1/3DIN), Ni1000, Ni1000TK5000.
- Power supply: 12 … .34 VAC/VDC
- Analog Output U: min. Load resistance 10 kOhm
- Analog Output I: Load: 300 … 1000 Ohm
- Power input: Relay PIR 60 VDC / 1A
- Accuracy LUX: ± 10%
- Measuring range LUX:: 4 measuring ranges
- Operating temperature: -15°C…+70°C
- Connection: Screw clamps 1,5 mm2
- Protection class: IP54
- Norms: CE, EMC pursuant to EN 61326-1 2006, EMC directive 89/336/EEC
