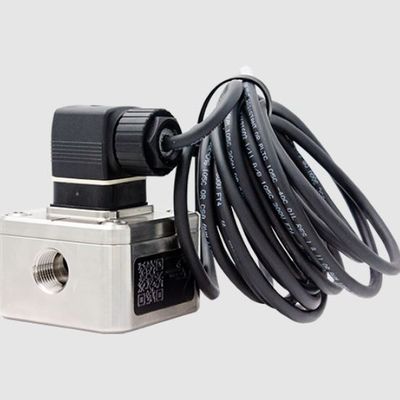

TCS - Model 500 -Oval Gear Meter

Flow Range: &nbsp;4 to 180 GPH (15 to 681 LPH)
Linear Accuracy: &nbsp;Capable of &plusmn; 1%
Repeatability: &nbsp;Capable of 0.03%
Operating Pressure: &nbsp;Up to 150 PSI (10.5 BAR)
Temperature Range: &nbsp;-35&deg;F to 176&deg;F (-37&deg;C to 80&deg;C)
Connections: &nbsp;3/8" NPT
Hall Effect Output: &nbsp;3 wire open collector, 5-24vdc at 20 mA max
Protection Class: &nbsp;Built to IP66/67 (NEMA 4X)

The Oval Gear meter is a precise positive displacement flowmeter incorporating a pair of oval geared rotors. These meters are capable of measuring the flow of a broad range of clean liquids. Stainless Steel flowmeters are suited to most water-based products, chemicals, and lubricating liquids. The flow meter is available as a blind pulse meter with a non-factored pulse output capable of interfacing to most monitoring and control instrumentation.
