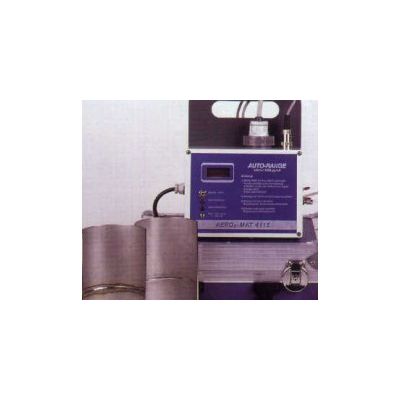

Model Aero2-Mat 4115 -Oxygen Indicator

The Intercon Aero2-Mat 4115 is an oxygen indicator for measuring oxygen content in a partial pressure gas enviroment. It is capable of resolution into the parts per million (ppm) region of oxygen content in this type of enviroment, typically argon.

Most popular related searches

oxygen indicator

continuous oxygen monitoring

oxygen monitoring

oxygen indicator monitor

purge stabilization

Features

Utilises an electrode\electrolyte in solution to measure rest oxygen levels
Capable of reading values from 100% (outside air) into the ppm region oxygen levels
A reading value is usually displayed within 5 minutes, however this depends on the volume being purged
LCD display
No stabilization time required

Generally, during welding it is recommended that there be continuous oxygen monitoring to prevent quality failures due to a gas or purge problem. To accomdate this, the AeroMat 4115B comes complete with a probe for root gap inspections. During butt welding, constant oxygen monitoring can be performed with the supplied bulkhead fitting.

Benefits

Useful for finding oxygen leaks
Quickly establish weld parameters
Portable: weighs 4.8 lbs
Complete weight with carrying case is 10 lbs
