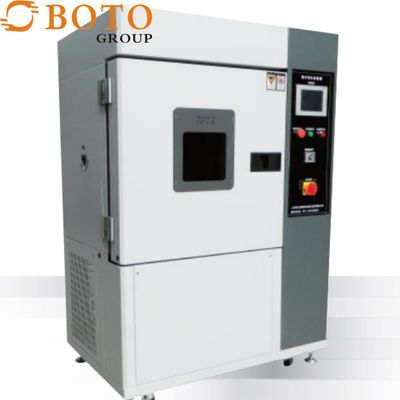

BOTO - Model B-CY-120 -Ozone Aging Test Box

Ozone aging test chamber is one of the climate simulation test equipment for testing vulcanized rubber in the static and dynamic tensile deformation state, exposure to air containing a certain concentration of ozone and a certain temperature environment, but no direct sunlight under the harsh Adaptability test conditions for a variety of research institutes and factories and mines laboratory test samples for the aging test. It was controlled by the PLC touch screen, temperature control accuracy.

Most popular related searches

digital temperature controller

Ozone resistance aging test box is mainly suitable for polymer materials and products (rubber) of the resistance to ozone aging performance test. Ozone content in the atmosphere is very low, but it is the main factors of polymer materials aging. Ozone aging test chamber simulating and strengthen the ozone condition in the atmosphere, get approximate to actual use or reproduction of the test results in a short time. The studay of ozone effect regulation to rubber products, quickly identify and evaluate rubber materials resistance to ozone and antiozonant protection efficiency method,and then take effective aging proof measures to improve the service life of rubber products.

Corresponding standards: JIS K 6259 , ASTM1149 , ASTM1171, ISO1431, DIN53509 , GB/T13642, GB/T 7762-2003, GB 2951

Ozone resistance aging test box is widely used to control products quality in measuring quality control; Rubber & Plastics; automobile production; wire and cable; packing materials; instruments and meters; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research laboratories; inspection arbitration, and technical supervision departments and other rubber products.

Ozone resistance aging test box by the occurrence of silent and efficient ozone generator ozone gas, and a certain amount of air processed, the switch in the mixture into the chamber, the continuous line UV detector to detect the concentration of ozone, ozone generator control feedback to the systems to control system settings according to the occurrence of effective control of ozone to the ozone chamber to maintain the appropriate concentration of work by heating humidification systems to meet all the test conditions.

Working size: 400mm × 400mm × 500mm (depth × width × height)
Ozone concentration range: 25pphm ~ 800pphm (adjustable)
Temperature range: RT +10 ℃ ~ 60 ℃ (adjustable)
O3 concentration fluctuation deviation:± 10%
Temperature uniformity:± 1 ℃ (no load)
Temperature fluctuation:± 1 ℃ (no load)
Timing range:0 ~ 999 hours (adjustable)
Power:AC220V ± 10% 50Hz
Weight :200kg
