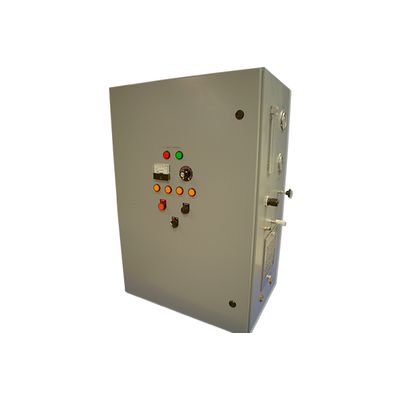

Simpson - Model SW150M -Ozone Generator

150 gr/hr Water Cooled High Frequency Corona Discharge Ozone Generator. The SW150M generator is used in all ozone applications including but not limited to Potable water, industrial & municipal wastewater, pools, cooling towers, industrial applications, aquaculture.

Most popular related searches

ozone generator

ozone generation

corona discharge ozone generator

water treatment ozone generator

cooling tower industry

air flow meter

ambient ozone monitoring

ozone water treatment

corona discharge ozone

drinking water industry

SW150M Ozone Generator. Separate oxygen concentrator required. For systems without on site compressed air an additional compressor is required.

Silent, Rugged, Reliable, Cost effective, Compact and Light Weight, Ceramic, Open or closed loop water cooled and power efficient.
No exposed high voltage safety hazards.
Precise ozone control using Pulse Density Modulation (PDM) via potentiometer, 4/20 ma or 0-10vdc.
Precise Control with Turn-down to 1%
Useful pressure range: 5-100 psi.
CSA-Optional, CE-Yes
One year limited factory warranty

Gr/hr with Oxygen - 150 Gr/Hr @ 30LPM of Oxygen
Energy 1500 w
Power @ 60/50 hz - 240v
Automatic 4-20ma Control - Yes
Manual Variable Control - Optional
High Temp Limit - Yes
Air Flow Meter - Yes
Ambient Ozone Monitor - Optional
ORP Control - Optional
Footprint(WxHxD) cm - 76 x 105 x 43 OR (30"x41.5"x17")
Weight - 100.7kg or 222lbs
