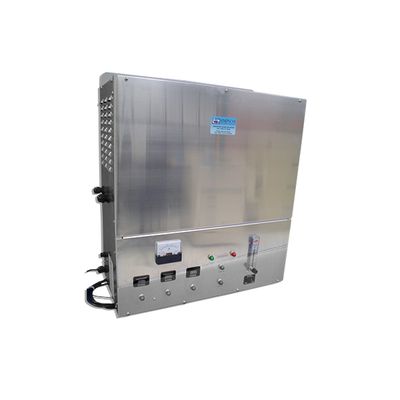

Simpson - Model SW30M -Ozone Generator
30 gr/hr Air Cooled High Frequency Corona Discharge Ozone Generator. The SW30M generator is used in all ozone applications including but not limited to potable water, wastewater, pools, cooling towers, aquaculture, etc.
Most popular related searches
ozone generator
ozone generation
corona discharge ozone generator
water treatment ozone generator
water cooling
air flow meter
ambient ozone monitoring
ozone water treatment
corona discharge ozone
air treatment ozone generator
- Wall configuration with front mounted controls standard
- Water Cooled Option (Order SW30M/W)
- High Pressure tolerance on feed gas to 40 psi.
- High Performance & long life ceramic dialectric
- Low energy consumption
- Easy service & minimum downtime
- Nema 4 rated cabinet with hinged door for easy service and maintenance.
- CSA-Optional, CE-Yes
- One year limited factory warranty
- Gr/hr @ 8.1 l/min PSA Oxygen - 30.0
- Energy - 300 w
- Amp draw 4.2A @120v/ 2A @ 220v
- Power - 120-240v @ 60/50 hz
- Manual Variable Control - Optional
- Automatic 4-20ma Control - Optional
- Ambient Ozone Monitor - Optional
- High Temp Limit - Yes
- Air Flow Meter - Standard
- Water Cooling - Optional
- ORP Control - Optional
- Cooling Water Shutoff - Automatic
- Air Cooling - Yes
- Size (h x w x d) - 60 x 60 x 34 cm OR(23.5"x23.5"x13")
- Weight - 43 kg or 95 lbs
