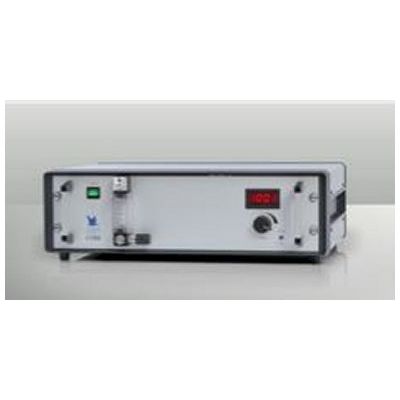

Anseros - Model COM-AD-01 -Ozone Generators

The efficiency of the AOP technologies is amazing, especially for waste water oxidation in combination with AOPR pipe reactors.  This is due to a mass transfer rate 10 times higher compared to classic ozone generators. The TCO are zero since no seals are built in and the discharge modules cannot be affected by any corrosion. As a consequence, the device is maintenance-free and ready for a long operation lifecycle. Fouling of electrodes and a decline of the ozone capacity is impossible. Doping gases, like N2, Ar, or others are not required. Any kind and quality of carrier gas can be used - dry air, humidified air, ambient air, oxygen from SEP/PSA-systems or pure oxygen (any class) from cylinder.

• Semiconductor processing
• Water oxidation and sterilization
• UPW ultra-pure water treatment
• Sanitization of surfaces
• Food production
• Slaughterhouses
• Pharmaceutical production
• Research & development
• Pilot installations

• Ozone capacity: 1 ... 5 g 03/h
• Ozone enthalpy: 4 g 03/h @ 100 Nl/h (SEPgas)
• Ozone concentration: 0.1 ... 190 g 03/Nm3
• Gas flow: 0.1 - 500 Nl/h with needle valve (option)
• Frequency control range: 0.1 - 100% capacity
• Remote control: interface built in, safety cutoff switch
• Carrier gas: any oxygen-containing gas, oil-free
• Chiller: ambient air cooling
• Dimensions: 1973HU/450 mm, rack mounting or
• portable housing
• Connector inlet/outlet: Vt - 6/4 PFA tube
• Weight: 8 kg without housing
• Power supply: 230/110 VAC-50/60Hz
