ITM-LAB - Model RS-315 -Package Drop Tester
Anti-Vibration Structure: Single-arm, dual-column engineering ensures rigid vertical lifting and zero lateral deviation during execution. Motorized Reset: Automated drop-arm retraction minimizes manual reset handling while enhancing operator safety. Hydraulic Shock Absorption: Integrated dampeners absorb sudden impact energy to shield frame alignment and extend service life. Digital Calibration: Precision electronic controls feature real-time height tracking with an automated limit-stop matrix. Modular Fixture Geometry: Universal specimen clamping system adapts to variable package dimensions for rapid sequence execution.
Most popular related searches
packaging testing
emergency stop
packaging testing system
industrial laboratory
laboratory certification
electrical safety
hydraulic control system
safety regulations
absorbent pillow
shock absorber

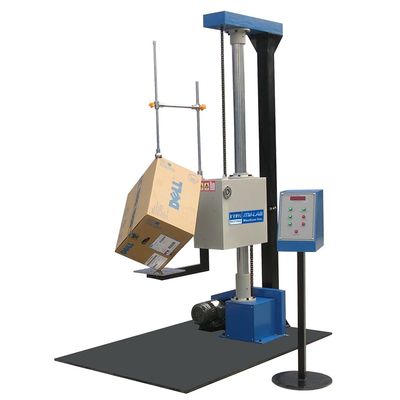

The RS-315 Single Arm Drop Tester is a professional packaging impact test equipment used to simulate free fall during transportation and handling. It performs face, edge, and corner drop tests to verify the shock resistance and protection performance of packaged products.
This machine adopts a single-arm double-column structure, electric control system, electromagnetic release, and hydraulic buffer to ensure stable operation, high test accuracy, and safe use. It is widely used in packaging manufacturing, electronic appliances, food, chemical industry, laboratory certification, and logistics quality control.
- Single-arm double-column structure: Stable operation, no lateral shaking, unaffected by power failure.
- Electromagnetic + spring assisted release: Instantly release the sample, ensuring real free-fall state.
- Hydraulic cushioning: Absorb impact force, reduce vibration, extend service life.
- Digital height display: Real-time height value, adjustable and precise.
- Electric lifting & automatic reset: Improve test efficiency and operational safety.
- Emergency stop function: Ensure operator safety under any abnormal condition.
- Steel impact plate: High flatness, ensuring test accuracy and repeatability.
- Universal fixture: Quickly adapt to different sizes of packaging samples.
Item: Specification
Model: RS-315
- Test Mode: Face, Edge, Corner Drop
- Drop Height: 300~1500mm Adjustable
- Initial Zero Position: 300mm (auto return when powered on)
- Max Test Load: 80kg
- Max Sample Size: L800×W600×H1000mm
- Height Accuracy: ±2%
- Impact Plate: Steel, flatness ≤2mm
- Release Mode: Electromagnetic + spring assisted
- Buffer System: Hydraulic cushion
- Control System: Digital display + electric control
- Power Supply: AC 380V, 50Hz, 10A (three-phase five-wire)
- Machine Dimensions: 1700×1200×2515mm
- Weight: 750kg
- Safety: Emergency stop, automatic reset, grounding protection
- Must be installed on flat and level ground.
- Must be reliably grounded for EMC and electrical safety.
- Power connection: three-phase five-wire (R/S/T/N/G).
- Do not approach the machine during testing.
- Interval between drop and reset ≥10 seconds.
- Emergency stop can be activated at any time.
