Model CDV-BT-AVVI -Package Leak Detector
FromControl Sensei

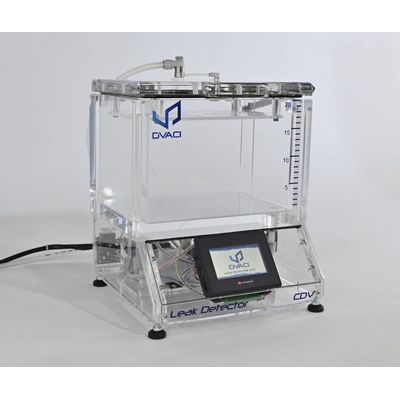

Our CDV-BT-AVVI leak detector is a vacuum chamber controlled by a programmable controller. It will allow you to perform simple test cycles. The vacuum control system is provided by a programmable controller which controls the venturi or the pump depending on the option chosen for the vacuum. This PLC allows to perform test cycles with a vacuum level and a time, determined by the operator.
Most popular related searches
packaging leak detection system
package leak detection
vacuum sensor controller
packaging leak
compressed air
pump controller
air testing
vacuum pump
vacuum pump control system
vacuum pump controller system
Dry test or immersion test
Our box is equipped to carry out all your tests :
- For packaging containing liquid : dry test
- For packaging containing solids and air : test and immersion
Dimensions
It exists in 3 sizes :
- Cut 2 : 280 x 200 x 200 mm
- Cut 3 : 450 x 300 x 250 mm
- Cut 4 : 500 x 350 x 350 mm
We can also make your box to measure according to your constraints : vertical position, specific openings, chassis…
Vacuum
Two options available :
- Venturi system that connects directly to your compressed air network (4 at 5 bars minimum)
- Integrated vacuum pump controlled by the system.
Options
- Printer for editing a ticket containing the test results.
- Barcode scanner allowing automatic selection of the program according to the product to be tested.
