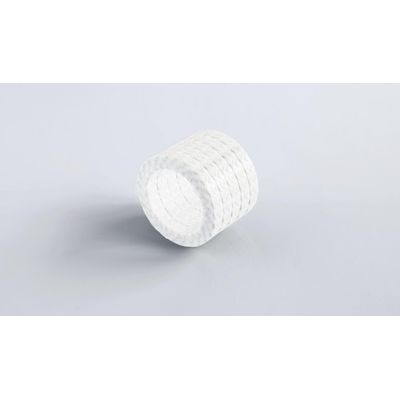

Burgmann - Model BPG 6225 -Packings

This product is designed for the use in fugititve emission valves. It can be used for quick repair service as alternative to specialised TA-Luft packing sets. Due to its low friction it is also suitable for control valves. For ISO 15848 and frequent temperature cycling life-loading of the bland bolts is recommended.

Low leakage rates,Emission certification,Good pressure and extrusion resistance

Speed: 2 m/s
Temperature: –100°C … +280°C
pH Value: 0 … 14
Pressure: 30 MPa

Media: Hot water, alkalis, organic solvents, gases, oils, greases, medium concentration acids and lyes. Expeptions: strongly oxidising acids such as sulphuric and nitric acid in high concentrations.
Certificates / Approvals: TA-Luft, ISO 15848

• Low leakage rates
• Emission certification
• Good pressure and extrusion resistance
• Low friction
• Suitable for quick repair service
