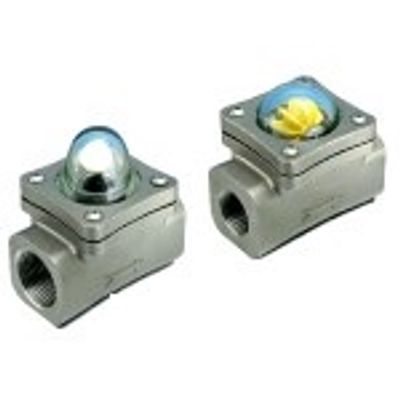

Sure Flow - Model SFB and SFP Series -Paddle Sight Flow Indicator
SERIES SFB and SFP meets the needs of simple flow applications. Either the Rising Ball or Paddle Style will satisfy most application needs when calibrated flow indicators are not required. Constructed from high quality materials these in-line indicators are suitable for many applications including water, oil, chemicals, air and gases.
HOW THEY WORK:
SERIES SFB – In a no flow condition the white PTFE ball remains seated in the body socket. As the flow rises the ball will lift out of the socket becoming visible. It will continue to rise and move freely in the dome as the flow rate increases. To be effective, the indicators must be mounted on a horizontal plane with the glass dome positioned upwards.
SERIES SFP – The paddle begins to rotate indicating that flow is present. The SFP style can be mounted both horizontal and vertical, offering bi-directional flow indication with low pressure losses.
SERIES:
- SFB = Ball Style
- SFP = Paddle Style
BORE SIZE:
- .250 = 1/4″
- .375 = 3/8″
- .500 = 1/2″
- .750 = 3/4″
- 1.00 = 1′
- 1.25 = 1-1/4″ SFB Only
- 1.50 = 1-1/2″ SFB Only
CONNECTION:
- N=NPT
- B=BSP
BODY MATERIAL:
- SS = Stainless Steel
- B = Brass
- 360° View Indication
- High Temperature – 400°F
- Mounts in Orientation
- Low Flow From <10 GPH to High Flow 150 GPM
- 316L Stainless Steel or Bronze Construction
- Works with Clear, Dark, or Opaque Fluids
- APPLICATIONS: Water, Sea Water, DI Water, Oils, Coolants, Solvents, Corrosives, Air, Gases, and Liquids.
For use in applications of:
- Water
- Oil
- Synthetic Oil
- Hydraulic oil
- Coolants
- Paint
- Solvents
- Corrosives
- Air
- Gases
