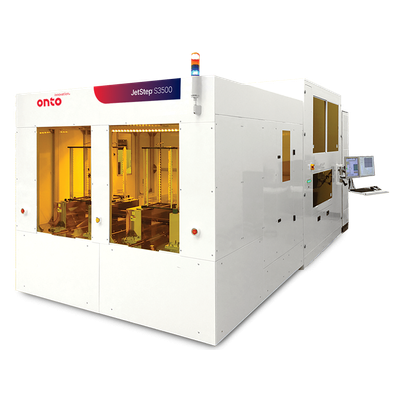

Onto - Model JetStep S3500 -Panel Lithography System

SHARE

The JetStep S3500 panel lithography system is specifically designed for advanced packaging panel production. As fan-out packages increase in size and complexity, requiring panel substrates instead of wafers, the JetStep S3500 system addresses these challenges with advanced features.

Most popular related searches
lithography system

The JetStep S3500 system is designed to provide OSATS?with a high-volume manufacturing advanced packaging lithography solution. For substrates up to 650mm x 650mm, it supports fan-out panel level packaging.

It handles die shift caused by placement accuracy errors, CTE mismatch and panel warpage. The system incorporates a large exposure field (59.4 x 59.4mm) with resolution capability to 2/2 L/S and options for increased resolution to 1/1. In addition, it supports multiple exposure wavelengths, ideal for process development with new photosensitive polymers. Application-specific options include warped panel handling, “on-the-fly” optical focus, and die shift correction (StepFAST™ Solution), helping to ensure precise and reliable panel-level packaging.

  • Fan-out panel level packaging (FOPLP)
  • Interposers
  • Photo imageable Dielectric (PID) vias
  • Redistribution lines (RDL) / Under bump metallization (UBM)
  • Non-standard substrates
