Model ASTM C478, AASHTO M199 -Perfect Lined Manhole System

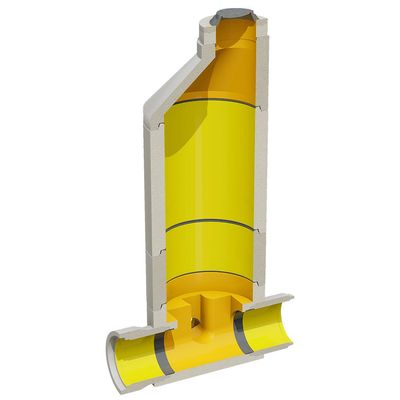

A complete sewer system with integrated plastic liner for a corrosion-free service life. Perfect Lined Manhole is a reinforced precast concrete manhole that meets ASTM C478 and is lined with high-quality synthetic polymer liner, which protects the concrete from Microbial Induced Corrosion (MIC) when exposed to municipal and industrial wastewater.
The entire structure of the monolithic manhole base including the wall, channel, berm, and the pipe connections are reliably leak-proof. The smooth change in the angle and slope of all channels and pipe connections provide ideal flow properties and prevent deposit build-up. The custom invert channels accommodate pipe of any configuration or size.
After installation, the Perfect Lined Manhole is easy to maintain and provides a high load-bearing capacity under static and dynamic loads. Setting a new quality standard for surface drainage and wastewater systems, the Perfect Lined Manhole System is available in standard sizes ranging from 48” up to 120” diameter.
Perfect Lined Manholes combine with Perfect Pipe for a completely lined, corrosion-resistant solution for municipal wastewater systems.
Lined concrete sanitary sewer and storm drain manholes are available in a range of sizes and designed to meet all national and local requirements.
The Perfect Lined Manhole System is a highly customizable, corrosion-resistant solution for sanitary sewer and storm drain manholes ranging in size from 44” to 120”. All manholes are designed to meet the varying load requirements required by national specifications. Perfect Lined Manhole bases are cast monolithically with customizable invert channels and pipe connections. Additional available features include manhole steps, various hole openings, and custom lids.
OverviewStandardASTM C478, ASTM C443, ASTM C990, AASHTO M199
ConstructDry cast and/or wet cast manufactured using Type III/V Cement which meets the requirements for both Type III and Type V Cement.
SizeStandard diameters of 48” to 120”. Section heights ranging from 1’ up to 8’ are available.
JointsRubber gaskets per ASTM C443 or flexible butyl mastic per ASTM C990.
LiningsHigh-density polyethylene, fiber-reinforced plastic
Principle UsesStandard manholes can be used to accommodate a change in pipe direction, a change in pipe size or shape, a location for maintenance and line observation access, junctions for multiple pipes, pump stations and wet wells, overflow structures and best management practice (BMP) products.
