Model Peridect + -Perimeter Detection Sensor

PERIDECT+ provides effective perimeter protection for objects of strategic importance. It detects an intruder directly on the boundary of the protected area and gains sufficient time for the security operator for an effective reaction. It brings lower risk and higher prevention of larger damage than intrusion detection inside the protected site. This fence detector can be installed on all common types of fencing but also on non-standard fencing like metal plates and welded decorative fences.

EXTREMELY LOW NUISANCE ALARM RATE

With a unique algorithm that compares data from neighboring fence detectors, Peridect+ dramatically reduces nuisance alarms in the protected perimeter caused by weather conditions like rain, wind, hail and lightning.

COST EFFECTIVE SOLUTION OF PERIMETER SECURITY

One control unit CUP+ (with two line controllers LCP+) together with our fence sensors cover up to 3 km of your perimeter. Cascading CUP+ units allows you to protect hundreds of kilometers of your fence.

NATIVE INTEGRATION WITH IP CAMERAS

In case of intrusion detection of secure perimeter, the external IP PTZ camera is automatically directed to move to the intrusion area for two-step verification.

FENCE SENSOR DETECTION ACCURACY

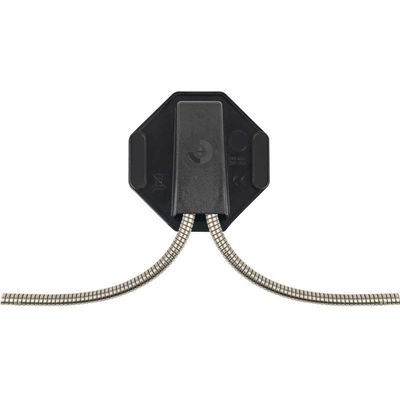

Thanks to addressable vibration fence sensors fitted at each fence panel, Peridect+ supports very high detection accuracy – typically 3m.

ANTIVANDAL SOLUTION

Among other things, our perimeter detection system consists of stainless steel tubes for cables that increase protection against mechanical damage and electromagnetic interference.

GALVANIC ISOLATION OF PERIMETER DETECTION LINE

Each perimeter detection line is galvanically isolated from the CUP+ unit. This provides much higher electomagnetic immunity.

RING AND STAR TOPOLOGY

The detection line can be branched, which makes it possible to cover even an irregular shape of the perimeter without making the installation unnecessarily expensive.

REDUNDANCY

Programmable outputs of our perimeter fence alarm can be linked to security control panels. An open API is available for a PSIM and a VMS integration. These softwares can display the exact location of an intrusion.

INTEGRATIONS WITH 3RD PARTY SYSTEMS

MODULARITY OF THE DETECTION SYSTEM

Modular architecture of Peridect+ allows easy modification and fence alarm system extension in the future.

WHAT ARE FENCE DETECTORS?

Fence detectors are sensors installed directly on the fence that detect trespassers trying to cross the boundary of the fence. The purpose of the fence sensors is to detect intruders on their way in and provide an early warning. Sensors increase the security of guarded areas by detecting attempts to climb over, cut, or otherwise breach the fence.
Fence detectors can be used not only on standard fences, but also on non-standard types of fences and exterior walls.

WHAT ARE PERIMETER PROTECTION SYSTEMS?

Systems that provide the first line of defense to detect intruders are called perimeter protection or perimeter detection systems. The official name of these systems is PIDS (Perimeter Intrusion Detection Systems). Peridect+ belongs to the category of Barrier-Mounted PIDS (deployed on physical barrier, e.g. fence).
Generally speaking, these systems are exactly what you‘d think — secured fences and gates against external threats.

CAN WE INTEGRATE FENCE DETECTORS INTO OTHER PROTECTION SYSTEMS?

Our fence sensors are integrated with many major PSIM, VMS and CCTV systems. Thanks to this integration, it is possible to accurately visualize the location of the intrusion, point the camera for two-step verification and run approved standardized incident procedures.

CAN I ALSO PLACE THE FENCE DETECTOR OUTSIDE THE FENCE?

Fence detectors are primarily intended for placement on fenced fields. Our company also offers detectors that can be installed purely as an underground detection system, or can combine underground and fence detection.
