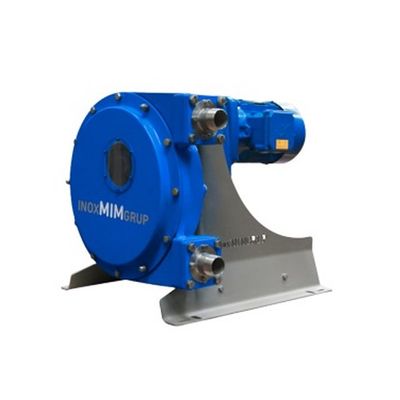

FlowMIM - Model FL–PH -Peristaltic Pump
FlowMIM has designed the FL–PH peristaltic pump with the aim of expanding the range of application of these pumping systems . With the range of cast iron or stainless steel, the FL–PH peristaltic pump is capable of satisfying the requirements in sectors such as water treatment, the chemical industry, the paper industry, mining, etc.
Some of the products they can handle are: sludge, cellulose, sludge, sediments, carbonates, thick carbon suspensions, mortars, concrete, fiber cement, dyes, colorants, glues, resins, detergents, fertilizers, hydrocarbons, paints, inks, enamels, pigments, fats, collection of used oils, etc. Working with this wide variety of products, whether products with low, medium or high viscosity, is due to the fact that the only contact of the product with the pump is through the tube , avoiding contact of the mechanical parts with the fluid.
The design of these pumping systems has been especially oriented to increase the pumping capacity (flow and pressure) in addition to extending the life of the tube materials, making the FL–PH provide high performance with great durability.
- GG-25 gray cast iron body
- Tube material: Natural rubber
- Finish: Industrial
- Pressure switch plus pulse damper on delivery
- Control panel with 5 or 15 meters of cable
- Remote control
- AISI 316 stainless steel cast body
- Other rubber materials: White/black natural rubber, EPDM, NBR and FKM (Viton). (For other materials, consult)
- Other connections: GAS and DIN 2576
- Variable frequency drive, or the acronym AFD
- Connection and lubrication system
- Level and/or temperature probes
- Solids receiving hopper
- Bench, carriage
- Connections: DIN 2576
- Abrasion resistant natural rubber tube
- Working temperatures: from -20 to 80 °C (temperatures up to 150ºC with other materials)
- Maximum allowable pressure of the elastomer: 15 bar
- Roller regulation
- Easy assembly/disassembly for easy maintenance tasks
