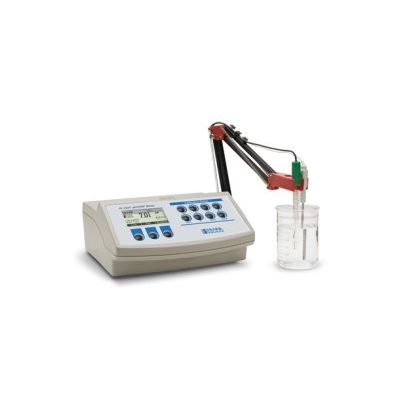

Model HI 3220 -pH/mV Benchtop Meter

HI 3220 features an interactive user support interface that assists you before, during and after measurement. On-screen tutorials guide users through set-up, calibration and measurement while context sensitive help of any screen is available at a push of a button. The help screen includes language specific assistance for menu parameters, calibration, logging, contact and accessory information for your instrument.

This instrument features HANNA’s exclusive Calibration Check™, a diagnostics system that ensures accurate pH readings every time. By alerting users of potential problems during the calibration process, the Calibration Check™ system eliminates erroneous readings due to dirty or faulty pH electrodes or contaminated pH buffer solutions during calibration. Throughout the calibration process, users are guided step-by-step by the on-screen tutorial. After calibration, the probe condition is evaluated and an indicator is displayed informing the user of the overall pH electrode status.

The HI 3220 is equipped with one input channel.

This instrument can measure using ORP electrodes (pH channel input), thanks to it`s capability to measure mV with a resolution up to 0.1 mV.

• One or two input channels
• pH Calibration Check
• Five point pH calibration with seven standard and five custom buffers
• Stability, interval and log on demand logging
• Up to 400 log on demand records and 600 automatic logging records
• Messages on the graphic LCD for an easy and accurate calibration
• Multi-language support
• GLP features
• PC interface via USB

Temperature Compensation (pH): Manual or automatic from -20.0 to 120.0 °C(-4.0 to 248.0 °F)
Probes: HI 1131B pH with BNC connector and HI 7662-T stainless steel temperature probe (included)
Logging: Log-on-demand 200 samples
PC Connectivity: Opti-isolated USB (with HI 92000 software)
Lot Logging: 5, 10, 30 sec
1, 2, 5, 10, 15, 30, 60, 120, 180 min
Input Impedance: 1012
Power Supply: 12 VDC
Environment: 0-50 °C (32 to 122 °F) Max. RH 55% non-condensing
Dimensions: 235 x 207 x 110 mm (9.2 x 8.14 x 4.33")
Weight: 1.8 kg (4.1 lbs.)
