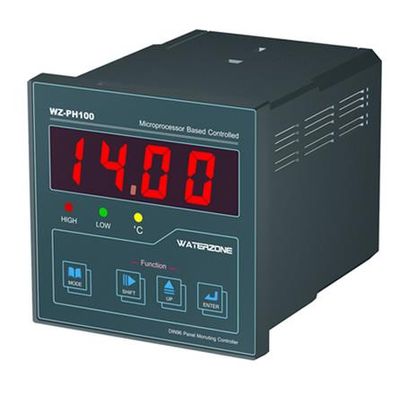

Waterzone - Model WZ-PH/ORP100 -pH / ORP Controller
For measuring the water quality of power plant control and production processes.
Most popular related searches
water quality monitoring
water quality
pH/ORP measurement
pH/ORP analyzer
wastewater treatment plant
pH/ORP controller
water monitoring
scrubber control
swimming pool
water quality control
- Model WZ-PH100 Analyzer
- Model WZ-ORP100 Analyzer
- Microprocessor controlled
- Automatic temperature compensation (pH)
- Automatic buffer recognition calibration and manual calibration
- 7-Segment 4Digit Readout
- One-touch Temperature Display
- Isolated DC 4-20mA 2ch output
- High, Low Programmable Alarm Relays
- Panel-mount, 96 X 96 DIN Size
- Process line and plating processing facilities and facilities for products.
- Scrubber Control.
- For measuring water quality in water purification, sewage, and wastewater treatment plants.
- For measuring water quality in swimming pools, mineral springs, and hot springs.
- For water quality measurement of hydroponic cultivation and fish farms.
- For measuring the water quality of neutralize titration systems.
- Other areas of water quality measurement monitoring and control.
- Product name: DIN96 Panel-type pH/ORP measuring device.
- Model name: WZ-PH100, WZ-ORP100.
- Measurement range: 0 to 14.00 pH, -1999 to +2000mV, 0 to 100.0? or Order Spec.
- Display Method: 7-Segment 4 Digit.
- Minimum display range: 0.01pH, 1mV, 0.1?.
- Power source: AC 110/220V 50/60Hz 7Watt.
- Signal output: 2ch isolated 4 ~ 20mA DC (750 ohms Max. Load).
- Relay Output: Two SPDT (5A @ 250VAC Max.).
- Operating temperature: -20 to 60?.
- Operating humidity: 0 to 95%, None-Condensing.
- Precision: +/- 0.1% F.S.
- Reproducibility: +/- 0.1% F.S.
- Response: 10sec (90% saturation).
- Temperature compensation: automatic and manual.
- Material of enclosure: enclosure – ABS Plastic.
- Keypad: Membrane 4-Key.
- Dimensions: 96(W) X 96(H) X 123(D) mm.
- Installation method: Cut out front panel.
- Weight: 520g aprox.
