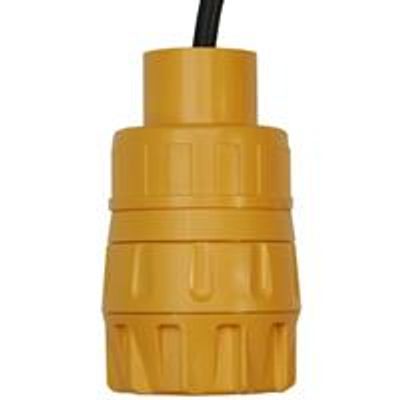

GF Signet - Model Type 2760 -pH/ORP Preamplifier
The Signet 2760 pH/ORP Preamplifiers features the DryLoc® connector, providing a robust connection to Signet DryLoc® electrodes. The 2760 preamplifier allows any DryLoc® pH/ORP electrode to work with Signet ProcessPro® and ProPoint® pH/ORP instruments. It is also sold as a simple connector for use with other manufacturers’ instruments that do not require a preamplified signal.
The DryLoc electrode connector system quickly forms a robust assembly for submersible and in-line installations. NEMA 4X junction enclosures extend the preamplifier cable to long distances.
The 2760 submersible preamplifier can also be used as an In-line preamplifier when used with the ¾ in. or 1 in. threaded sensors including the 2724, 2774 and 2764 series electrodes. The 2760 In-line preamplifier can be used with Signet fittings up to DN100 (4 in.) and wet-tap assemblies.
pH/ORP:
- Compatible Instruments: Signet 8750
- Connection: Durable DryLoc® with gold plated connections
- Mounting styles: In-line integral mount and submersion
- Compatible sensors: 2724 - 2726, 2735, 2756 - 2757 Wet-Tap, 2764 -2767, 2774 - 2777
Advantages:
- In-line integral mount and submersible installation versions
- Patented DryLoc connector provides a quick and secure connection to the sensor
Fields of Application:
- Water and Wastewater Treatment
- Toxics Destruction
- Heavy Metal Removal and Recovery
- Effluent Monitoring
- Neutralization Systems
- Aquatic Animal Life Support Systems
- Flocculent Coagulation
- Scrubber Control
- Surface Finishing
- Sanitization Systems
- Pool and Spa Control
Standards:
- CE
- China RoHS
- RoHS Compliant
- FCC
