Model HP350 Series - Pilot Scale

Model HP350 Series -Pilot Scale

FromDyhydromatics

SHARE

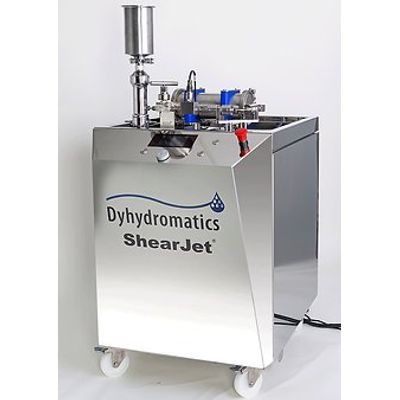

The ShearJet HP350 Series electric hydraulic processor operates with a single intensifier pump which processes smaller sample sizes (from 80 mLs) and higher flow rates in distinct passes or continuous runs. Because of the different piping configuration from the HP1200 series, the HP350 can run small samples with low dead volume, making it an excellent choice for R&D and pre-pilot scale applications.

Most popular related searches

pressure transducer

sample processing

The Standard configuration of the non-pharma HP350 consists of:

1 liter stainless steel reservoir
Ceramic plunger
Reaction Chamber and Back Pressure Reaction Chamber (Diamond)
Product heat exchanger (tube and shell)
Tools & Spares
FAT/SAT (option)
IQ/OQ (option)
2 or 3 Liter reservoir (option)

The Premium configuration of the non-pharma HP350 consists of:

1 liter stainless steel reservoir
Ceramic plunger
Reaction Chamber and Back Pressure Reaction Chamber (Diamond)
2 Thermocouples
Product heat exchanger (tube and shell)
Pressure transducer and display (5 points of calibration)
Tools & Spares
FAT/SAT
IQ/OQ (option)
2 or 3 Liter reservoir (option)

The Pharmaceutical version of the HP350 model consists of:

1 liter stainless steel reservoir
Ceramic plunger
Reaction Chamber and Back Pressure Reaction Chamber (Diamond)
2 Thermocouples
Product heat exchanger (tube and shell)
Pressure transducer and display (5 points of calibration)
Electropolished & Passivation with certifications
UPS Class VI plastics and elastomers with certifications
Tools & Spares
FAT/SAT
IQ/OQ
2 or 3 Liter reservoir (option)
