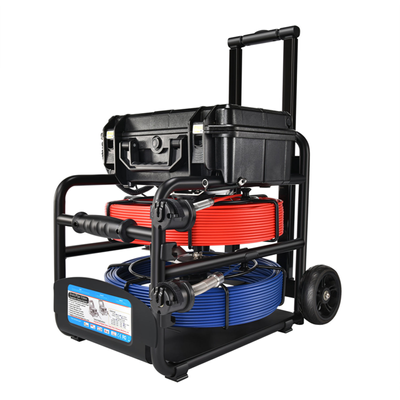

TvbTech - Model 3499F-Dual -Pipe Inspection Camera

Typical Configurations:

• 1, 5.2mm rod cable with 23mm head + 4.8mm rod cable with 14mm/18mm camera head
• 2, 6.8mm rod cable with 23mm head + 4.8mm rod cable with 14mm/18mm camera head
• Both 23mm head and 18mm head are 1080P AHD.

• 23mm camera head with 20-40m cable, dia. 5.2mm or 6.8mm
• 1080P Full HD Stainless steel camera head, IP68 waterproof level
• With on-screen distance counter
• Wireless keyboard for text input (English)
• With two plastic guides 8-901 and 8-923
• 14mm camera head with 20-40m red color rod cable, dia. 4.8mm
• with ball guide 8-933
• Suitable for pipe sizes: 20 to 150mm (0.8" to 4")
• 7" or 10.1" LCD monitor with recording feature; records to SD card
• Ability to go through 90°bends in Φ32mm pipes
• Rechargeable battery lasts up to 6 hours
• Whole system waterproof (box closed)
• Power adapter and car charger included
• Compact, Rugged and easy to use design
• With wheels and retractable handle for easy transpotation and operation

Optional Features:

• Built-in 512hz sonde
• Self-leveling function
• 33khz transmitter
• 10.1" LCD screen
• 38mm camera head
• 18mm camera head

• Camera Size: Φ23mm×51mm
• Camera Total Length: 155mm
• Sensor: 1/3" CMOS
• Resolution: AHD 1920*1080
• View Angle: 130°
• Focus Distance: 15cm (approx)
• Depth-of-Field: 20cm(approx)
• Front Lens: Sapphire glass
• Water-Proof: 20m Under Water(Camera fix on Cable)
• Shell Material: #304 stainless steel
• Lighting: Built-in 15×LED(White)
• Operating Temperature: -10~50?/+14~+122?
• Storage Temperature: -20~60?/+4~+140?

• 20/30/40M fiberglass rod cable for 5.2/6.8mm cable + 20/30/40/60M fiberglass rod cable for 4.8mm cable
• Dia. of push cable: 5.2mm/6.8mm + 4.8mm
• Material of cable: Fiberglass covered by PP

• Screen: 7-inch or 10-inch 16:9 Super bright HD color LCD screen
• Resolution: 1024x600 pixels
• Mirror and Flip: support image mirror, and flip
• Video Resolution: AHD 1080P / CVBS D1
• Video Encoding: H.264
• Audio Recording: local sound record
• Output: TV and Audio output
• On-screen date and time
• On-screen meter/ft. distance display(optional)
• External memory: support SD memory card up to 64GB
• Language: Simplified Chinese, English, Traditional Chinese, Japanese, Korean, Russian, German, French, Italian, Spanish, Portuguese, Thai, Finnish, Swedish

• Power Supply: DC 12V input
• Battery Capacity: 7.2V 6400mAh Li-on Battery
• Power Output: 6-12V DC, USB 5V
• Work/Charge time: 6/8 hours

• 1 x 23mm Camera head + 1 x 14mm/18mm Camera head
• 1 x 20/30/40m cable wheels + 20/30/40/60m cable wheels
• 2 x Plastic guides(dia.80mm and dia.46mm) + 1 x ball guide(dia.28mm)
• 1 x remote control
• 1 x screw driver
• 1 x power adapter
• 1 x car charger
• 2 x connection cables
• 1 x Screws and camera head waterproof seal
• 1 x waterproof control box with monitor mounted
