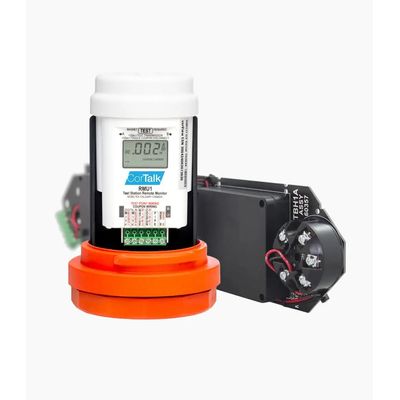

Mobiltex CorTalk - Model RMU1+TS1 -Pipeline Integrity Temperature Sensor
Robust, reliable, and cost-effective temperature monitoring of pipeline assets is now available from MOBILTEX, engineered for performance in even the most extreme and remote locations. The MOBILTEX TS1 configurations enable field technicians to install remote, battery-powered GPS-enabled temperature sensing capabilities that are compatible with our CorTalk RMU1 platforms. Measurement data is accessible 24/7 within our CorView Platform cloud-based interface to enhance pipeline integrity data collection and help ensure the fitness of the pipeline in locations that have historically been cost-prohibitive to monitor.
RMU1 Environmental
- Operating Temperature: -40° to +60° C (-40° to +140° F)
- Storage Temperature: -45° to +80° C (-49° to +176° F)
- Maximum Altitude: 5000 meters above sea level
- Humidity: 0 to 100% RH non-condensing
RMU1 Physical + Power
- Weight: 225 grams (0.5 lbs)
- Size: 80mm x 80mm x 110mm (3.15”x3.15”x4.33”)
- Battery Life: L91 Lithium AA batteries — Typically 10 years based on readings every 7 days (no INT1). Typically 5 years based on readings every 12 hours and 2 weeks of interruption per year (with INT1).
TS1 Environmental
- Operating Temperature: -40° to +85° C (-40° to +185° F)
- Storage Temperature: -50° to +90° C (-59° to +194° F)
- Maximum Altitude: 5000 meters above sea level
- Humidity: 10 to 90% RH non-condensing
TS1 Physical + Power
- Weight: 300 grams (0.7 lbs)
- Size: 80mm x 28mm x 172mm (3.15”x1.10”x6.80”)
- Battery Life: L91 Lithium AA batteries — Typically 10 years based on readings every 7 days
Accurate temperature monitoring on multi-product lines requires wide temperature ranges, depending on the product and the season. The TS1 RTD transmitter connects to any standard Pt100 resistance sensor, is fully configurable, and provides high stability over an extremely wide range making it ideal for any field application.
The MOBILTEX TS1 enables pipeline engineers to easily and cost effectively monitor for extreme temperature fluctuation to identify risks of accelerated pipe coating deterioration and identify potential geohazard events where soil and moisture conditions shifts have occurred affecting normal temperature, which may have also damaged the pipeline. The TS1 also will allow users to monitor for pipeline temperature variances to enable more accurate calculation of volumetric flow for leak detection system calibration.
- Fast, simple installation
- Engineered for ease-of-use
- Intuitive controls and configurations
- Global communication capabilities
- Built to withstand the toughest conditions
- Long-life battery
- The compact, weather-proof RMU1+TS1 is designed to fit entirely inside a standard CP test station and can be installed in about 30 minutes
- Compatible with any RMU1 Generation 4, the TS1 temperature sensor package can connect to any standard Pt100 resistance sensor and is fully configurable, provides high stability, and can monitor pipeline or soil temperature
- The RMU1 can be easily programmed with our standard Programming Interface and a PC and can also be completed with a compatible iOS or Android-based mobile device and our available Bluetooth Interface
- Available with cellular or satellite communication capability, the RMU1+TS1 can transmit data from virtually any location. This helps improve the quality and frequency of data collection, while reducing the need for workers to undertake long, potentially dangerous trips, to remote sites
- Lightning, surge and overvoltage protection and broad operating temperature range (-40° to +60°C [-40° to +140°F])
- User-replaceable batteries provide up to 10 years of monitoring and data transmission and maximizes lightning isolation
