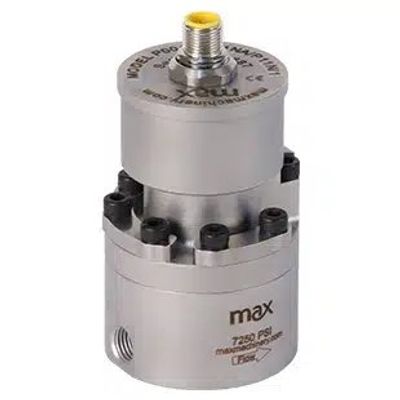

Model P001HS -Piston Flow Meter
Dynamic flow industries like aerospace/automotive testing, machine tool cycling, and valve testing rely on Max meters to provide high resolution rapid 1.6 millisecond response times for their data collection. Max Piston Meters are not sensitive to changes in flow profile, fluid density, or viscosity. No straight pipe runs or flow conditioners needed. Choose from frequency or analog transmitter options. High temperature models up to 225°C available. CE Certified, Ex-proof version available with ATEX/IECEx and UL/cUL certifications.

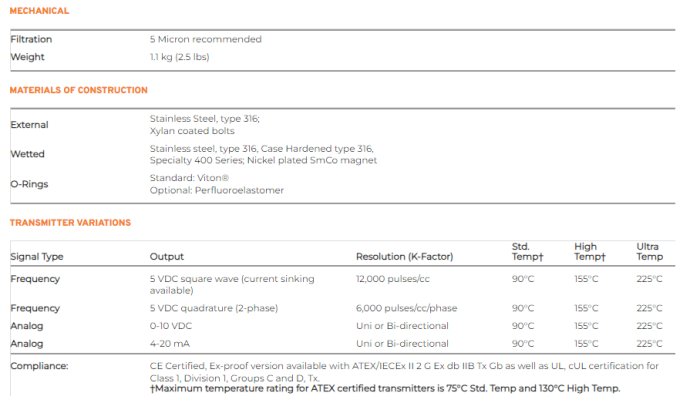

Flow: 0.005 to 200 cc/min; 0 to 0.053 gpm
Port Size: 1/4″ or 6mm tube fitting
Accuracy: (at 3 cP): ± 0.2% of reading over a 200:1 range
Pressure: 7250 psi (500 bar) maximum
K-Factor: 12,000 pulses/cc
Fluids: Most non aqueous, hydrocarbon based fluids
