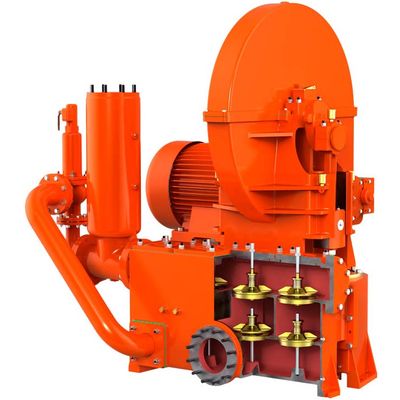

IRON Pump - Model Type BDV/BDHV -Piston Pump
FromIRON Pump A/S
The BDV pump series is a range of twin cylinder, double acting, piston pumps. The pumps robust construction, reliability and performance supersedes many other pump types of modern design.
Most popular related searches
piston pump
double acting piston pump
integrated safety
vertical pump
standard gear motor
bilge water pump
seawater pumping
seawater pump
bilge pump
bilge
The pump series, designed for heavy duty operation, features geared connection between the crank and motor which is selected from a range of IEC standard electric motors. The gearing enables a considerable flow selection with each model.
BDV/BDVH piston pumps are well suited for applications where self priming is required and the robust construction offers the user a high degree of security.
- Type: Piston Pump
- Features: Self-priming, Dual acting, Twin cylinder, Integrated safety valve
- Flow range: 22 – 290 m3/h
- Pressure range: 10 – 100 mLc
- Installation: Horizontal intlet, Vertical discharge
- Pumped liquid: Fresh water, Sea water, Bilge
