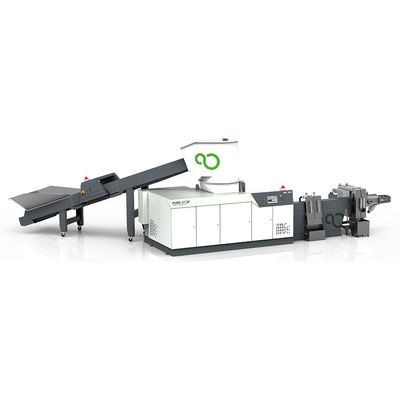

PureLoop - Model ISEC evo -Plastic Recycling Machine

ISEC evo applies a careful treatment to ensure high recycled pellet quality. The more gently a plastic recycling machine processes the material, the higher the quality of the recycled pellets.

Thanks to the conical transition from the single-shaft shredder to the extruder, the material is compacted, and oxygen is reduced. Working together with the double feed ram system, this technology also ensures continuous and uniform filling of the extruder. That is how our plastic recycling machine ensures high recycled pellet quality.

ISEC evo (integrated shredder extruder combination, evolution) is a unique plastic recycling machine. The combination of shredder and extruder ensures higher throughput and cost efficiency. In PURE LOOP`s system, the shredder and extruder are configured on one drive shaft. In cooperation with the double feed ram system, this technology ensures maximum flexibility and consumes significantly less energy.

The single-shaft shredder (1) reduces the size of the material fed into the system. The process is controlled by the patented double feed ram pusher system (2). The double feed ram system fills the extruder evenly and continuously. It enables various materials to be processed.

Material that is preheated during upstream processing is conveyed directly to the extruder (3) powered by the same drive shaft. The conical transition from the single-shaft shredder to the extruder compacts the material, reduces oxygen and plasticizes the material in the extruder. The melt is degassed in the degassing zone (4). In the subsequent, fully automatic, self-cleaning filter (5) any solid contaminants are removed from the melt which is conveyed to the pelletizing system (6)
