Tramigo - Model OBD Standard -Plug and Play Tracking Devic

SHARE

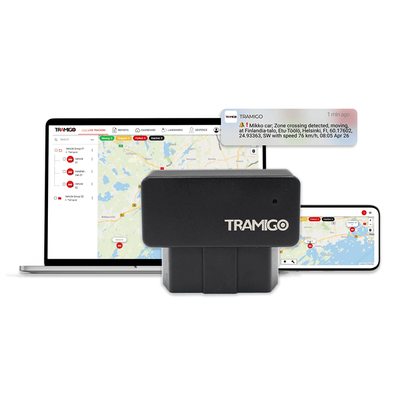

Tramigo OBD Standard is an all‐in‐one Plug and Play tracking device with vehicle tracking features. Plugs directly into your vehicle’s OBD port with no additional tools or wiring required. Connect the device using barcode with TramigoApp or TramigoCloud and start tracking immediately. Tramigo OBD Standard comes with embedded connectivity (eSIM), no SIM installation is required. Works in 700+ networks across 200+ countries providing best regional coverage. Includes first 12 month of free connectivity subscription.

Most popular related searches
GNSS receiver
vehicle tracking
GNSS
transmission data
ground penetrating radar data

Hardware specifications

  • Size: 49 mm x 48 mm x 22 mm
  • Weight: 58 g
  • Backup battery: Li-Polymer, 60 mAh
  • Operating voltage: 8V to 32V DC
  • Operating temperature: – 20 to + 80 ℃
  • Operating temperature: – 40 to + 80 ℃ for storage
  • BLE: support BLW 4.2 protocol

GNSS Specifications

  • GNSS type: u-blox All-in-One GNSS receiver
  • Sensitivity autonomous: – 147 dBm
  • Hot start: – 156 dBm
  • Reacquisition: – 160 dBm
  • Tracking: – 162 dBm
  • Position accuracy: autonomous 2.5m
  • Cold start: 27s average
  • Warm start: 27s average
  • Hot start: 1s average

GSM

  • Frequency: 850/900/1800/1900 MHz
  • Data Transmission: GPRS multi-slot class 33
  • EDGE multi-slot class 33
