BelGAS CP

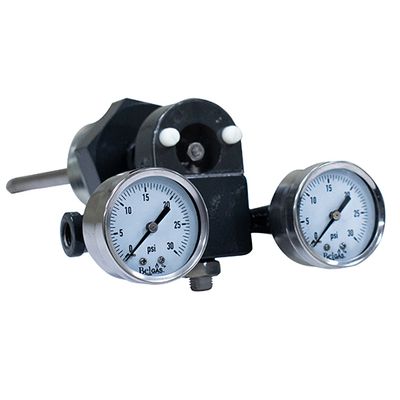

Model P8500 -Pneumatic Level Control
FromBelGAS CP
The BelGASCP P8500 series is a pneumatically operated liquid level controller with a simple design designed for use in liquid level and liquid interface control applications. Displacers of various materials, as well as different rod lengths are available.
Most popular related searches
level controller
liquid level control
scrubber tank
actuated valve
dehydrator
valve actuator
control valve
Applications
- Separators
- Compressor Scrubbers
- Tanks
- Dehydrators
- Treaters
Features
- Displacers of various materials, as well as different rod lengths are available
- Used to actuate a valve which controls discharge of vessel liquid
- Offers both throttling and snap acting control styles
- The on/off signal can be used to control or actuate downstream devices
Inlet Pressure Range: 20-30 PSIG
Outlet Pressure Range: 3-20 PSIG Throttling; 0 (off) OR 20 (on) PSIG Snap Acting
Max Working Pressure: 1500 PSIG
Connection Sizes: 3", 4", 5" NPSL, 4", 5" ACME, 2" NPT
Housing Connection: 1/4" NPT
