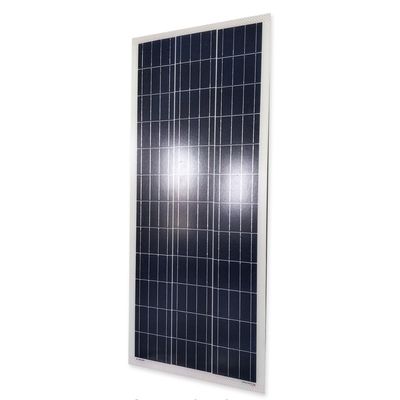

Aslan - Model 100W -Poly-crystalline Solar Panel

Technical parameter

• Maximum Power (W): 100W
• Optimum Power Voltage (Vmp): 17.87V
• Optimum Operating Current (Imp): 5.60A
• Open Circuit Voltage (Voc): 21.45V
• Short Circuit Current (Isc): 6.17A

Mechanical Characteristics

• Cell Type Polycrystalline: 156x104mm (6 inch)
• No of Cell: 36 (4x9pcs)
• Dimensions: 1120x678x35mm
• Weight: 9.7KGS
• Front Glass: 3.2mm, High Transmission, Low Iron, Tempered Glass
• Junction box: IP65 Rated
• Output Cable: TUV 1×4.0mm2/UL12AWG, Length: 900mm

Temperature and Coefficients

• Operating Temperature(°C): -40°C ~ + 85°C
• Maximum System Voltage: 600V(UL)/1000V(IEC) DC
• Maximum Rated Current Series: 15A
• Temperature Coefficients of Pmax: -0.435%
• Temperature Coefficients of Voc: -0.35%
• Temperature Coefficients of Isc: 0.043%
• Nominal Operationg Cell Temperature (NOCT): 47+/-2°C

Materials of solar panel

1. Solar Cell——Poly-crystalline solar cell 156*156mm
2. Front Glass——-3.2mm, high transmission, low iron, tempered glass
3. EVA——-excellent anti-aging EVA
4. TPT——-TPT hot seal made of flame resistance
5. Frame——anodized aluminum profile
6. Junction Box——-IP65 rated, high quality, with diode protection

Superiority: high quality anodized aluminum frame, high efficiency long life, easy installation, strong wind resistance, strong hail resistance.

Features

1. High cell efficiency with quality silicon materials for long term output stability
2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures
3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance
4. Both Poly-crystalline and Mono-crystalline
5. Excellent performance in harsh weather
6. Outstanding electrical performance under high temperature and low irradiance

Quality assurance testing

• Thermal cycling test
• Thermal shock test
• Thermal/Freezing and high humidity cycling test
• Electrical isolation test
• Hail impact test
• Mechanical, wind and twist loading test
• Salt mist test
• Light and water-exposure test
• Moist carbon dioxide/sulphur dioxide
